Cressall - Model ES Series -Standard Dynamic Braking Resistors
Cressall’s standard ranges of high capacity dynamic braking resistors (DBRs) for regenerative and rheostatic electric motor braking are low cost, easy to specify, quick to install and with ratings to suit inverter drives of any power. Our wide range of resistor technologies means that we can select the most technically appropriate and cost-effective resistor design for any application, whether continuous, intermittent or infrequent.
We offer two product ranges to cover continuous powers up to 100kW:
- ES and DBR ranges for powers to 25kW
- SD and HPR ranges for powers to 100kW

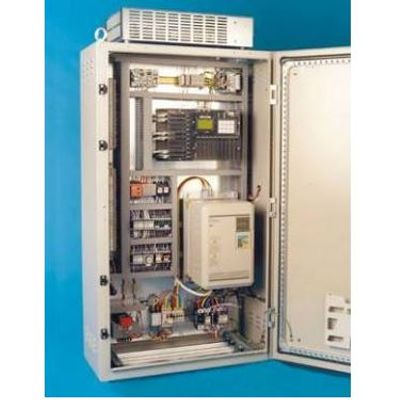

ES Series, 0.6 – 8kW Continuous
- Our ES range is usually available from stock so there’s no waiting for the right DBR
- Spiral wire wound resistor element on ceramic former
- Negligible noise
- Low inductance
- Temperature stable design, low increase of resistance value
- Optional thermal switch
- Terminal block mounted at one end of the enclosure, cover for terminal block, allow for ingress protection IP 20
- Easy installation: Pre-drilled mounting holes, knock-outs in terminal cover, units suitable for horizontal or side mounting.
- Low cost: Achieved through better design, standardisation and use of common components
- Easy to specify: Standard enclosure designs for powers to 100kW
- Standard power ratings: Continuous ratings from 600W to 100kW continuous
Fast delivery: For same day dispatch of stock items (ES and DBR) in the UK contact our UK distributor: CP Automation before 10.00am. Units not held in stock can be manufactured quickly.
Performance: Our range of elements combine excellent heat dissipation for continuous braking with the highest active surface area per kW in the industry, giving outstanding short-time performance for repetitive braking duties.
Confidence: Our experience in supplying resistors for electric motor brakes combined with accurate sizing software means we can predict the performance of your resistor for any specified duty cycle.
ES and Braking Resistor Designs to 25kWCressall ES and DBR braking resistors are based on two types of resistor elements:
- HP Coils: spiral wire-wound coils on ceramic formers
- ZC Coils: edge-wound coiled strip on ceramic formers
Both elements offer high overload capacity and rapid cooling. The alloys used have low changes in resistance over the temperature range: no more than 18%, unlike designs using 304 stainless steel which can increase in resistance during the heating cycle by as much as 50%, resulting in lower braking currents and less effective braking.
