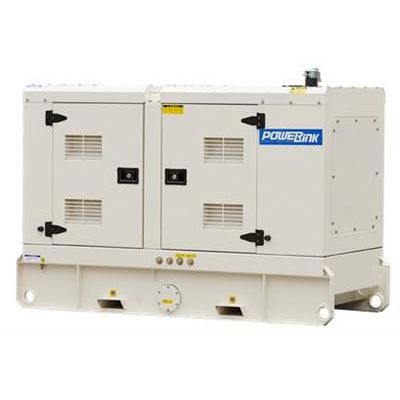

Powerlink - Model WPL9S - Standby Power Diesel Generator
FromPowerlink Group
Powerlink diesel generating set is used as standby power supply, providing emergency power protection for users when power failure or temporary power failure occurs. The investment cost is low and the payback time is short. It is mainly used in municipal and commercial fields such as hotels, hospitals, schools, banks, telecommunications, command centers, databases, catering and entertainment establishments.
Most popular related searches
standby power
diesel generator
diesel generating set
diesel generator set
fuel tank
standby power supply
generator set
emergency power
fuel tank double
standby power generation
- The main components are selected from the top international brands, with high reliability and stable performance.
- The starting speed is fast, and the load capacity is strong.
- Load fluctuation adaptability, the unit can start and stop frequently.
- Fuel consumption rate is low, from low load to full load operation, the curve changes smoothly, and fuel economy is excellent
- Control Model PLC-920
- Prime Power（kVA） 9
- Prime Power（kW） 7
- Manufacturer PowerLink
- Standby Power（kVA） 9.625
- Standby Power（kW） 7.7
- Frequency（Hz） 50
- Phase 3
- Wires 4
- Volatage（V） 380/400/415/440
- Fuel Tank Capacity（L） 100
- Noise Level@1m（dBA） 73.7
- Noise Level@7m（dBA） 60
- Dimensions L*W*H（mm） 1650*850*1100
- Dry Weight（Kg） 625
- Type of Fuel Diesel, 0# or ASTM2
- Type of Oil CF4/SG15W-40
- Model Type Soundproofed
- Length（mm） 1650
- Width（mm） 850
- Height（mm） 1100
- Protection Level-Set IP44
- Standard Package Plastic
- 380V / 400V / 415V / 440V 13.7/13/12.5/11.8
- Breaker NADER 16A
- Injection System Direct injection
- Recommended Fuel Type 0# or ASTM2
- Fuel Tank Type Double-layer
- Ambient Temperature （°C） -5℃-50℃
- Barometric Pressure （kPa） 100
- Relative Humidity ＜80%
- Altitude （m） <3500
- Poles 3
- Genset Internal Connection Type Integrated
- 6000V~6600V N/A
- 10000V~13800V N/A
- Starting Type Auto/Manual
- Screen Display Mode LCD
- Screen Dimension（mm） 240*181*41.7
- Protection Level-Control Box IP56
- Breaker Control Mode Manual
- Connection Type of External Cable Connector terminal
- 380V / 416V / 440V / 460V / 480V N/A
- Fuel Tank steel
- Radiator 50
- Control Type AutoGen
- Breaker Brand SCHNEIDER
