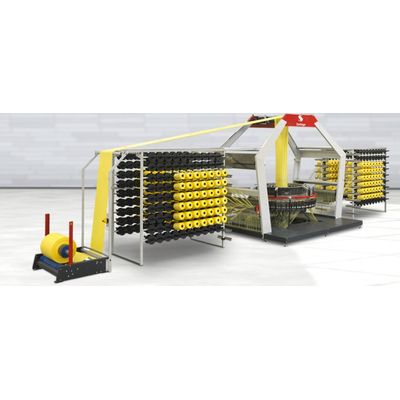

Starlinger - Model FX 6.0 -Circular Loom Machine
What’s the IQ of your loom? Is this about measuring the intelligence of a machine? Almost. The Indicator of Quality (IQ)is a benchmark that Starlinger & Co. GmbH introduced together with the new FX 6.0 circular loom series.
The new FX 6.0 series has an IQ of 350 meters.
This benchmark figure indicates the meters produced on a loom divided by the number of warp breaks. The Indicator of Quality serves as a means of evaluating and comparing the loom performance and fabric quality. In this case it means that a warp break on the FX 6.0 occurs on average only every 350 fabric meters, while conventional looms on the market have warp breaks every 80 - 120 m.
- Indicator of Quality (IQ) of 350
- Optimised weaving technology
- Production speed up to 1200 ppm *
- High efficiency > 90% *
- Fabric width tolerance ± 4mm *
- Wear and tear resistant
- Sensor for weft tape end
- Warp break detection system
- Outstanding fabric quality from 50 to 120 g/m2
- Weft tape width up to 6 mm **
- Oil-free fabric for high coating adhesion and food-safe products **
- Large warp and weft tape packages
- Energy-saving AC drives
* based on AD*STAR® quality standard
** depending on tape quality, reed version, fabric width and density
- Indicator of Quality (IQ): 350
- Working width, doubleflat: 300 - 850 mm
- No. of tapes: 588 / 672
- Shuttles/machine: 6 pcs
- Weft insertion*: 1200 ppm
- Warp/weft core inside diameter **: 35 mm
- Warp/weft length of core **: 218 mm
- Warp bobbin diameter (max.): 180 mm
- Weft bobbin diameter (max.): 115 mm
- Winding roll diameter (max.): 1200 mm
* depending on weaving construction, fabric, and quality of tapes
** special versions on request
