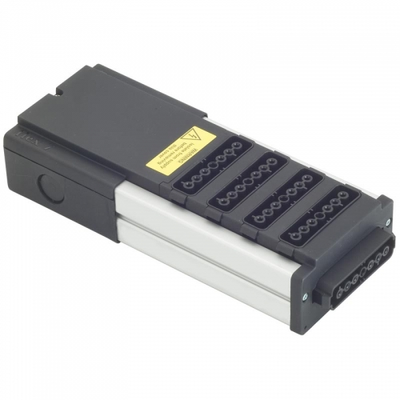

Flex7 - Starter Lighting Distribution Box
The Starter Lighting Distribution Box is at the heart of the flex7 lighting connection range and at its simplest provides for plug-in connection of multiple luminaires controlled by a single switch or control device. In common with all units in the range the type of lighting control can be simple on/off or dimmable. If using third party control products (i.e. switches/sensors) they will require hard wiring to the input terminals provided, but for ease of installation we strongly recommend selecting the appropriate control from our extensive range of plug-in lighting control devices. Reserve one outlet for this method.
Expanding a Starter Unit
If you simply need to connect a single group of luminaires, then a Started Distribution Box allows you to do just that.
If you want to add extra luminiares at any stage you just need to plug an Expansion Box into your Starter Box to provide extra outlets.
If you want to control a 2nd group of luminaires separately, share power from your Starter Box with a Supply Tap-Off Box by plugging it into the extra outlet.
You can plug them in direct unit-to-unit, or via a lead
- Outlets rated 16A 230V. Total system rating 16A.
- Large capacity input terminals can accept 3 x 2.5mm², 2 x 4mm² or 1 x 6 mm² conductors.
- 7-pole – ideal for on/off or dimming control
- End outlet can be used as a spare, or to plug-in additional units.
- All units come with unique snap on/off single point fixing brackets.
