PSE - Static Thermal Module

FromPSE AG
SHARE

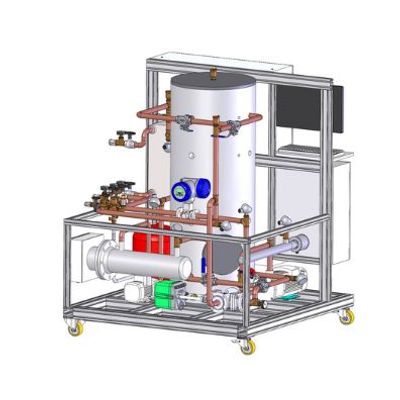

This device is designed to supply water on a constant temperature level. Static thermal module with one tank. This module can be used for heating (source) or cooling (sink) during the performance test for electrical or thermal driven heat pumps or chillers.


Most popular related searches
heat pump
heating and cooling
electrical heating
electrical heat

Test procedures according DIN EN14511-3 are mostly predefined in the software. Therefore the following control modes are available in the standard version:

  • Constant supply temperature at constant volume flow
  • Constant supply temperature at constant pressure drop

Other software features are:

  • Visual display of measurement data
  • Storage of all data in a data base

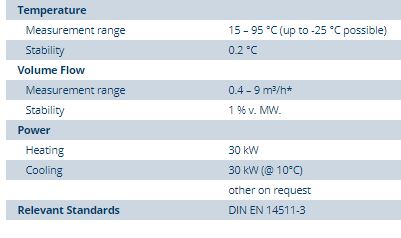

The module fulfills the requirements according DIN EN 14511 in means of control accuracy of the supply temperature and volume flow. The system can be adjusted individually to the requirements of our customers.
