Merus Power - Model SVC - Static Var Compensators
Merus™ Static Var Compensator (SVC), another part of the Merus™ FACTS family, is built on proven thyristor technology. The state-of-the-art Merus™ thyristor valve is extremely compact in design and delivers superior performance compared with other solutions available in the market.
Fast reactive power compensation with Merus™ SVC ensures effective flicker mitigation and voltage variation control in steel plants with electric arc furnaces (EAFs), in mining plants with mine winders, excavators, crushers and grinders or to enhance transmission capacity and achieve unity power factor in utilities. Merus™ SVC provides tailored solutions to meet customer requirements from 3.3KV up to 38.5kV 250MVAr. Merus Power can deliver a complete turnkey solution
Key functions
- Voltage variation control
- Flicker mitigation
- Dynamic reactive power control
- Power factor improvement
- Harmonic current mitigation
- Load balancing
- Increased productivity of steel plants by reducing melt-time
- Increased torque and payload of large inductive loads with stabilized voltage
- Transmission and distribution network capacity enhancement
- Longer plant lifetime
- Reduced maintenance costs
- Improved plant reliability
Merus™ Static Var Compensator (SVC) can be flexibly used in reactive power compensation and passive harmonic filtering applications. Merus™ SVC can be connected to voltage levels from 3.3 kV all the way up to 38.5 kV. The reactive power compensation range varies from 4 MVAr to 250 MVAr.
Application areas include
- Steel industry (electric arc furnaces, rolling mills)
- Mining (mine winders, excavators, conveyors)
- Shredders, crushers and cranes
- Voltage control in utilities
Innovative design and reliability

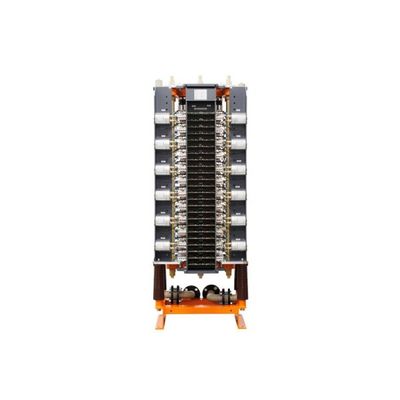

At the heart of SVC is Merus™ thyristor valve, used in TCRs and TSCs for dynamic control of reactive power. Merus™ thyristor valve was developed to meet the highest requirements for compactness, performance and reliability in harsh industrial environments. Thanks to the state-of-the-art composite construction, the valve is compact enough to be installed even into a standard sea freight container, enabling relocatable SVC designs.
Modular design
The SVC system can be built for all medium voltage levels starting from 3.3 kV all the way up to 38.5 kV. Power output ranges from 4 MVAr to 250 MVAr. The devices can be connected in parallel for a higher total output and added redundancy. Each SVC system is tailor-made to fit the network fault level and load parameters.
Efficiency with proven control algorithms
Open- and closed-loop control strategies permit effective flicker mitigation, reactive power control, power factor control and harmonic mitigation. The thyristor valves in the SVC are equipped with Merus™ Control & Protection System that utilizes proven control algorithms.
