MSD - Model MS 100 - 100 kg/h -Steam Boiler
FromMSD GmbH

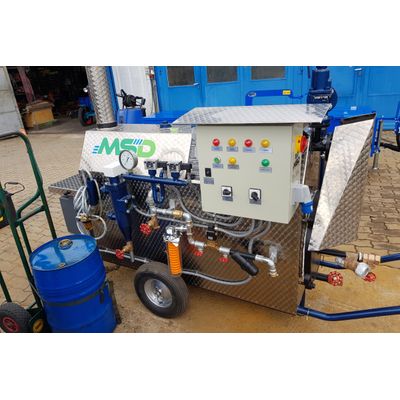

MS 100 is the mini-version of our mobile steaming systems. It is especially suitable for small surfaces and substrate quantities and is distinguished by its unrivalled portability. It can be easily moved like a wheelbarrow by a single person. Please note, however that it is not possible to equip a MSD steam boiler of the MS series with a boiler feed pre-heater. For this reason, such boilers have a slightly lower efficiency factor than the type S boilers.
Most popular related searches
- Steam output ; 100 kg/h
- Heating oil consumption ; 8.5 litres/h
- Thermal output KW ; 74
- Heat flow kcal/h ; 64,000
- Total length ; 2.2 m
- Total width ; 1.0 m
- Total height ; 1.65 m
- Empty weight ; 600 kg
- Steam connection ; PK / 50
- Surface unit capacity (~25 cm steaming depth at ~80°C) ; 4-7 m²/h
- Surface unit capacity of the hood (~25 cm steaming depth at ~80°C) ; 10-11 m²/h
- Throughput rates for substrates ; 1.0-4.0 m³/h
- Mash /must heating (liquids) ; ~1,400 litres/h
