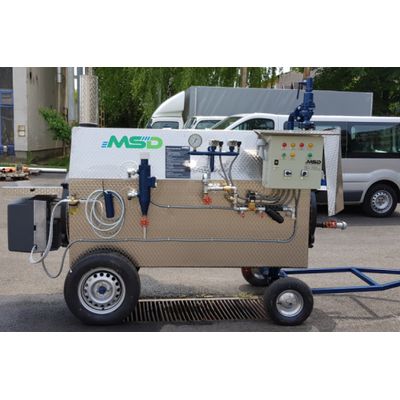

MSD - Model MS 200 - 250 kg/h -Steam Boiler
FromMSD GmbH
The next model up in the range, the MS 200 steam boiler, doubles the performance of our MS 100. Thanks to the second swing axle in the front, this boiler can also be easily moved. Like the MS 100, because of its small size, it cannot be equipped with a water pre-heater, therefore has a slightly lower efficiency factor than the type S boilers.
Most popular related searches
- Steam output ; 250 kg/h
- Heating oil consumption ; 20 litres/h
- Thermal output KW ; 185
- Heat flow kcal/h ; 160,000
- Total length ; 2.6 m
- Total width ; 1.1 m
- Total height ; 2.0 m
- Empty weight ; 900 kg
- Steam connection ; PK / 50
- Surface unit capacity (~25 cm steaming depth at ~80°C) ; 7-12 m²/h
- Surface unit capacity of the hood (~25 cm steaming depth at ~80°C) ; 11-20 m²/h
- Throughput rates for substrates ; 2.5-8.0 m³/h
- Mash /must heating (liquids) ; ~3,600 litres/h
