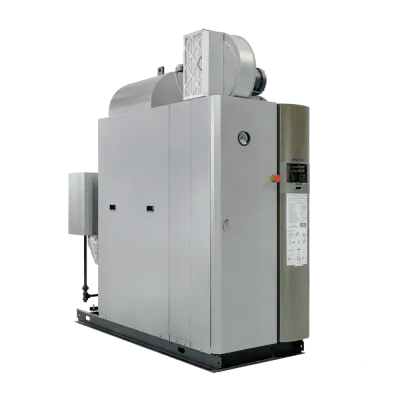

Miura - Model LX Series - Steam Boilers
Miura's LX Series Boilers are designed to meet the high-efficiency and low emission needs of diverse industries. These boilers feature Low and High-Pressure steam options from 50-300HP and operate using natural gas or propane. With a compact form factor that fits through standard doorways, the LX series is ideal for facilities looking to minimize space usage while maximizing output. Known globally for environmental stewardship, Miura's innovative design achieves NOx ratings as low as 9ppm at 3% corrected O2, significantly enhancing energy efficiency and compliance with sustainability objectives. The LX series ensures unmatched safety, reliability, and efficiency, courtesy of its unique floating header design, which allows full steam production within five minutes from a cold start-up. With a modular configuration, these boilers offer streamlined installation and maintenance, making them a versatile and cost-effective solution for industries such as automotive, chemical processing, and healthcare.
The Miura LX series boilers feature Low and High-Pressure steam boilers from 50-300HP and use natural gas or propane. The LX’s compact size allows most of this model to fit through a standard doorway. Miura is known worldwide for our commitment to protecting the environment and our innovative and efficient boiler designs. The naturally low NOx design has NOx ratings that can be as minimal as 9ppm at 3% corrected O2. Which can help your facility improve its energy use and efficiency to help you meet or exceed your company’s sustainability goals.
Our low NOx LX Series steam boiler is the high-efficiency, easy-to-use boiler your facility has been dreaming of. The unique design of the LX ensures safety, reliability and efficiency that go unmatched in the industry. The LX can reach NOx regulations as low as 9ppm NOx at 3% corrected O2.
- On-Demand Steam Solution
- Compact Footprint
- Modular
- Safety
- Efficiency
- Sustainability
- Reliability
- Monitor and maintenance icon
- Monitoring & Maintenance
Compact Design – Miura’s LX Series Boilers occupy 50% less floor space than typical firetubes and do not require tube pull space. You can get double the capacity in the same space or reduce space requirements by half for new construction.
Full Steam Output within Five Minutes – Our floating header design means faster start-up. Miura boilers can produce full steam in 5 minutes or less from a cold start-up.
- 5 minutes from cold start to full pressure.
- Ultra-Low NOx gas burner with “Quenched flame”.
- Up to 300HP per boiler and up to 4,500HP (150,000lb/hr) with our MI-system.
- 170 PSIG and 15 PSIG MAWP available.
- Miura’s exclusive “low water content, water tube” design is the most versatile boiler available in the marketplace today. A once-through forced circulation steam boiler producing steam in just 5 minutes while maintaining an 85% fuel-to-steam efficiency.
Modular design allows flexibility to customize your steam plant to meet any demand
and load profile optimized for superior energy management
- Zero-side-clearance design reduces boiler room size and cuts construction costs
- Achieves 87% efficiency using Miura’s built-in energy recovery & water treatment systems
- Steam production from a cold start in 5 minutes
- Saves up to 20% on fuel costs & CO2 emissions on average.
- New design innovations optimize combustion for consistent low NOx emissions.
- Ultra-Low NOx Model Now Available (9 ppm)
- MIURA’s exclusive “low water content, water tube” design is the most versatile boiler available in the marketplace today. A once-through forced circulation steam boiler producing steam in just 5 minutes while maintaining an 87% fuel-to-steam efficiency.
