Steam Jet Circulation Heater

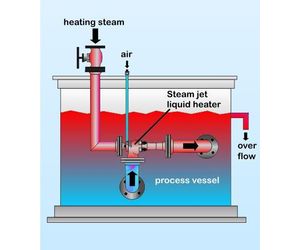

These heaters are installed on the outside of a liquid tank using short liquid pipelines. The steam flowing through the nozzle is expanded so that a low-pressure zone is generated at the nozzle outlet. This causes the liquid in the tank to be sucked in. Steam condenses thereby heating the liquid which flows back into the tank via the mixed-flow line.
