Steroguard - Electrodynamic Line Conditioners

ISOLATION TRANSFORMER
This component, thanks to the electrostatic shield inserted between primary and secondary windings, ensures the galvanic separation and high attenuation of common mode noises. It is characterised by N delta-star configuration or F or N thermal class, low output impedance and insensitivity to the power factor. The insulation between primary and secondary, primary and shield, secondary and shield is greater than 3000 V during one minute.

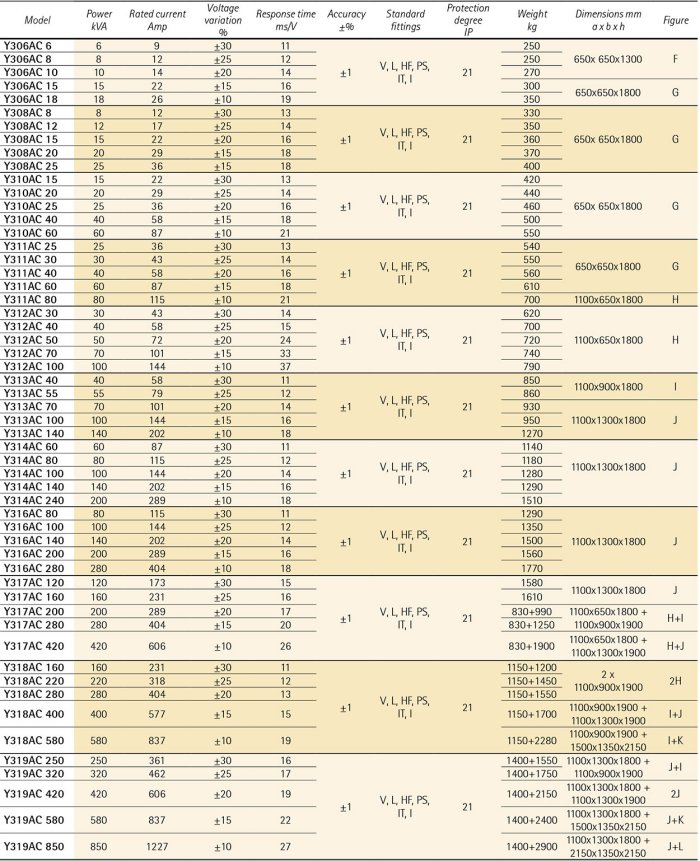

ELECTRODYNAMIC VOLTAGE REGULATOR
It ensures the “true RMS” value of the voltage with ±1% output accuracy even in the presence of strong harmonic distortions.
The innovative control circuit, combined with the structural reliability of the electrodynamic stabilisation system, has the following characteristics:

• response time from 6 to 40ms/Volt, depending on the model
• overload capacity 10 times the nominal voltage for 10 milliseconds, 5 times for 6 seconds, twice for 60 seconds
• efficiency of 97-98%
• insensitivity to load power factor and load variations
• insensitivity to mains frequency variations, in ±5% range
• harmonic distortion introduced lower than 0.2% under any operating condition (virtually zero)
• internal impedance that varies, according to the models, from 0.52 to 0.0015 Ohm (it does not require a new sizing of the protections being irrelevant compared to the line impedance)
• sizing of the magnetic components aimed at limiting iron and copper losses in order to create a cooling system that only uses the natural convection. In fact, the use of fans requires maintenance, filter cleaning and replacement on average every two years.

RFI FILTERS
On the conditioners’ output is installed a three phase filter for the suppression of electromagnetic interferences.

OPERATING TEMPERATURE
Steroguard line conditioners are designed to operate properly with a maximum ambient temperature of +40°C under harsh conditions: continuous duty, full load, input voltage at minimum value.

CONFIRMITY TO STANDARDS
Steroguard line conditioners comply with the Standards contained in Directives: EMC and further amendments, Low Voltage 2014/30/uE and ETIC 2014/35/uE.
