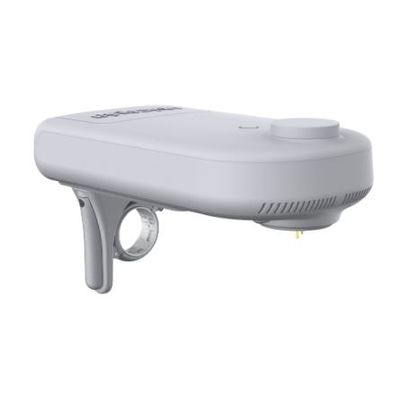

Ubicquia - Streetlight Small Cell
Compatible with 360M+ streetlights worldwide, accelerating the densification of 4G and 5G networks. UbiMetro removes the complexity of building small cell networks with integrated MIMO antennas, a wide range of RF front ends, with fiber, Ethernet or DOCSIS backhaul options. Fixture agnostic and barely visible from street level, UbiMetro meets city’s aesthetic and sustainability requirements while driving connectivity, safety and savings.
Winning Partnership
- Developed with Ericsson
- Piloted with AT&T
- Sold as Ericsson Street Radio
- Award-winning innovation
Faster Deployments
- Accelerates site acquisition
- Uses existing streetlights
- Near zero footprint
- Installs in minutes
Improved Economics
- 70% lower cost of ownership
- No new construction
- Complete small cell solution
- Integrated utility grade meter
Multiple Use Cases
- Network coverage & capacity
- Rapid 5G expansion
- Fixed wireless access
- IoT & public safety
Dimensions: 414mm x 239mm x 82mm
Radio power: 4 x 5 Watt
Antennas: Integrated omni-directional
Power Supply: 110V to 480V, 50/60Hz autosensing
Average Power Consumption: 120W
IP Rating: IP65
Utility integration: Asset monitoring. Light control and integrated metering
Impact Rating: IK07
Ambient Temperature Range: 40C to +55C
Backhaul: 1Gb Ethernet, fiber or copper via SFP
