Q3 Simple - String Box

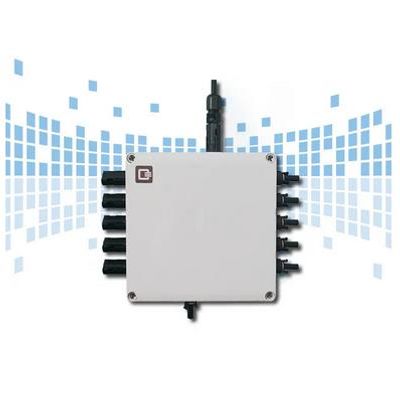

The Stringbox Simple has 2 to 6 inputs, pluggable from the outside via H4 or MC 4 connections. It is completely wired internally with a printed circuit board which can be fitted with fuses. The two outputs are also realised via H4 connectors. The wire cross-section can be between 2.5 and up to 10/25 mm².
Most popular related searches
For crystalline modules and thin-film systems
- extremely low structure
- simple and quick assembly
- cost effective
- flexible protection via fuses and/or diodes
Areas of application
Smaller string combinations of modules with a maximum total output current of up to 30 A
- Input
- Number of strings: 2 to 5
- I max. per string: 12 A
- U max. per string: 1 kV
- Contacting : H4/MC4 DC plugs
- Plug cable cross-section: 2,5 to 6 mm²
- Output
- Number of outputs: 1
- I max. per string: 30 A
- U max. per string: 1 kV
- Contacting : H4/MC4 DC plugs
- Plug cable cross-section: 2,5 to 10/25 mm²
- General
- Maximum power: 30 kW
- String protection : PV fuse/diode, positive and/or negative pole possible
- Housing: UV-resistant housing, IP65, ventilation membrane at the bottom
- Dimensions (in mm, LxWxH): 175x175x75; with plugs: 260x260x75
