Q3 Easy - String Box

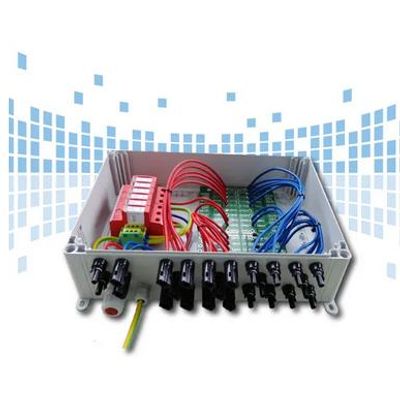

The Stringbox Easy has 4 to 18 inputs, pluggable from the outside via H4 connections. It is completely wired internally with a printed circuit board which can be fitted with diodes and/or PV fuses. The two outputs are also realised via H4 connectors. The wire cross section can be between 2.5 and 6 mm². Furthermore, the Stringbox Easy can be equipped with a second output or a cable cross-section of up to 35 mm² can be connected via screw terminals mounted on top-hat rails.
For larger thin-film systems and systems with crystalline modules
- fast assembly without clamps
- flexible protection via fuses and/or diodes
- can be equipped with many options (e.g. Overvoltage Protection)
Areas of application
Small to medium string combinations with crystalline modules with a maximum total output current of up to 90 A. Thin-film systems of all types in which the string combinations do not exceed an output current of 90 A.
- Input
- Number of strings: 4 to 18
- I max. per string: 8 A
- U max. per string: 1 kV
- Contacting : H4/MC4 DC plugs
- Plug cable cross-section: 2,5 to 6 mm²
- Output
- Number of outputs: 1-2
- I max. per string: 90 A
- U max. per string: 1 kV
- Contacting : H4/MC4 DC plugs
- Plug cable cross-section: 4 to 6 mm²
- General
- Maximum power: 90 kW
- String protection : PV fuse/diode, positive and/or negative pole possible
- Housing: UV-resistant housing, IP65, ventilation membrane at the bottom
- Dimensions (in mm, LxWxH): depending on the version e.g. 400x300x132 or 600x300x132
- Optional
- DC circuit breaker
- Overvoltage protection T1+T2/T2
