Q3 - Model BIG - String Box

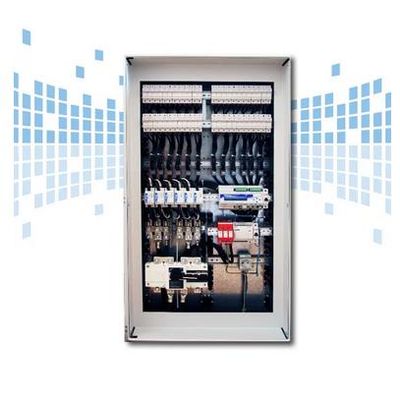

The BIG string box is a generator connection box for large systems. There are 5 standard versions with 8, 12, 16, 20 and 24 inputs. All the usual modules for large systems such as DC isolators, surge protection, PV fuses and current sensors can be integrated here. The Stringbox BIG is usually planned and constructed according to customer specifications. No wishes remain unfulfilled here.
Most popular related searches
photovoltaic plant
string current
photovoltaic power
surge protection
circuit breaker
overvoltage protection
circuit breaker protection
voltage data
string voltage
overvoltage
- individually exchangeable
- Plastic or steel housing possible
- from standard to high-end everything available
Areas of application
Large plants in the megawatt range, open field plants and large roof-top plants (e.g. factory buildings).
- Input
- Number of strings: 8 to 24
- I max. per string: 30 A
- U max. per string: 1 kV
- Contacting : M12/M16/M20/M25 (your choice)
- Plug cable cross-section: 1 to 25 mm²
- Output
- Number of outputs: 1
- I max. per string: 800 A
- U max. per string: 1 kV
- Contacting : M40/M50/M63/M75 (your choice)
- Plug cable cross-section: 95 bis 300 mm²
- General
- Housing: Sheet steel housing, IP55, optionally with fan/heater
- Optional
- DC circuit breaker
- Overvoltage protection T1+T2/T2
- String current measurement
- Voltage measurement
- Data transmission via RS485
- Data transmission via LoRa/GSM (wireless)
