JSC Stropuva ir ko

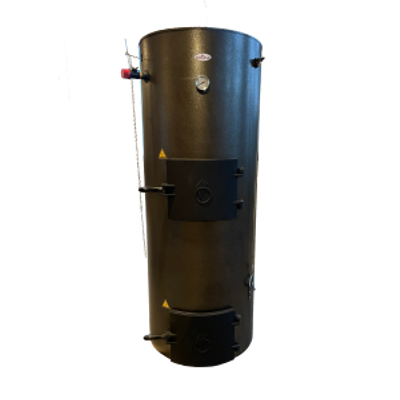

Stropuva - Model S20 – 20 kw -Stropus Boiler
When firewood is loaded, a single load burns up to about 30 hours. A single load of sawdust briquettes burns up to 4 days. Solid fuel: firewood, timber waste, sawdust briquettes, wood chips. Combustion duration of solid fuel load depends on its quality of fuel, outdoor and indoor temperature, thermal resistance, and other factors. Recommended moisture ≤30%*.
Most popular related searches
wood pelletizing
wood pellet
wood pelletting
boiler construction
wood chip combustion
wood burning
wood chip briquetting
coal burning
boiler efficiency
wood combustion
- Boiler model: S20
- Power (kW)*: 20
- Heating area ( m²)**: 100-250
- Fuel capacity (dm³): 187
- Maximum amount of firewood (kg): 47
- Maximum amount of wood pellets (kg): –
- Maximum amount of briquettes (kg): 56
- Maximum amount of coal (kg): –
- Burning time of wood on a minimum time mode (hr): 31,5
- on maximum mode ***: 6,1
- Burning time of wood pellets on minimum mode (hr): –
- on maximum mode ***: –
- Burning time of briquettes on minimum mode (hr): –
- on maximum mode ***: –
- Burning time of coal on minimum mode (hr): –
- on maximum mode ***: –
- Firewood length (cm): up to 45
- Amount of water in the boiler (l): 36
- Efficiency (%): 86,3
- Pressure safety valve (bar): 1,5
- Chimney Draught (Pa): 10-20
- Flow of heated water (l / h): 500
- Water temperature in the boiler (° C): 85
- Minimal area of chimney flue (cm²): 250
- Chimney diameter (mm): 180
- Distance between ground and chimney (mm): 1418
- Height (mm): 1970
- Depth (mm): 560
- Weight (kg): 197
