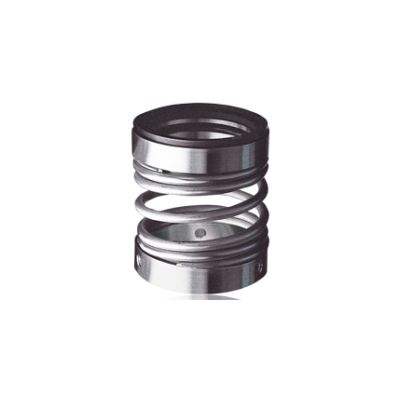

Model 17 - Sturdy Single Spring Component Seal
FromFlex-a-Seal, Inc
The Single Spring serves to keep the sealing faces in contact and positively transmits the drive evenly 360º around the full circumference of the rotary face. This is accomplished by specially designed ends of the spring, which provide an interference fit. Then as the shaft rotates the spring ends further increase their grip. This compression spring is wound either right or left hand depending on shaft rotation.
Most popular related searches
- Non clogging design
- Simple (5) parts assembly
- Can handle more axial movement
- Unbalanced Design ideal for low pressure applications
- Available in inch and metric sizes
- Standard 316 S.S. metal parts with Monel & Hastelloy C276 options available
- Carbon, Nickel bound Tungsten Carbide, Silicon Carbide and Bronze faces available
- Various choices of elastomers to meet required application
- Cartridge design available, see Style 57
Operating Conditions
Max Temp - 400ºF (204ºC)
Max Pressure - 150 PSI (10 bar)
Max Speed 4500 FPM (22 m/sec)
