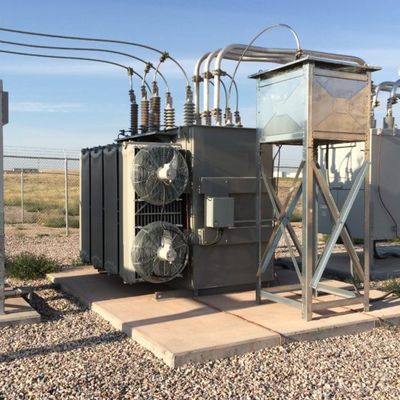

VanTran - Substation Single Phase and Three Phase Transformers

Substation transformers can be designed for an array of configuration options. VanTran offers top or side mounting bushings, such as partial and full-length air terminal chambers and close coupling flanges on all tank quadrants. VanTran can take care of it, no matter your requirements.

Most popular related searches

three-phase transformer

substation transformer

transformer substation

Standard Features:

High Voltage NEMA 2 Hole Spade Bushings
Low Voltage NEMA 4 Hole Spade Bushings
Aluminum or Copper Windings
Mineral Oil or Envirotemp™ Fluid
60 Hertz
65° Temperature Rise
Pressure Relief Valve
1” Fill Plug with Schrader Valve
Oil Level Gauge
Oil Temperature Gauge
Pressure Vacuum Gauge
1” Drain Valve with Oil Sampler
External 5 Position No Load Tap Changer
Anodized Aluminum Diagrammatic Name Plate
ANSI 61 Gray Paint

Optional Features:

Non-Standard/Elevated BIL Adder
Non-Standard Paint Color
Forced Air Cooling Fans
Removable Radiators
55° Temperature Rise
55°/65° Temperature Rise
50 Hertz Adder
Watthour Meter Assembly
Live Front Distribution Class Arresters
Station/Intermediate Class Arresters
BAY-O-NET Fuses
Back-Up Fuses
Dry Well Canister Fuses
1 Contact or Dual Contact Oil Level Gauge
1 Contact or Dual Contact Oil Temperature Gauge
NEMA 3R Control Box
NEMA 4 Control Box (Small)
NEMA 4X Control Box (Stainless Steel)
120 VAC Control Cabinet Light
120 VAC Space Heater with Thermostat
Drain/Breather
Pressure and Vacuum Gauge with Bleeder
Rapid Pressure Rise Relay w/ Seal in Relay
Cover Mounted Pressure Relief Device
Nitrogen Test Port/Gas Sampling Valve
2-Position LBOR Switch
4-Position LBOR Switch
Delta-Wye Switch
Infrared Viewing Windows
Doorstops
Removable Sill
Electrostatic Shield between HV & LV
U Channel Base
Danger/Warning Sign
Arc Flash Warning Sign
Alarm Box Light
Stainless Steel (304L or 316L) Tank, Base, ATC and Radiators
Nitrogen Preservation System
Neutral Grounding Resisters and High Resistance Grounds
