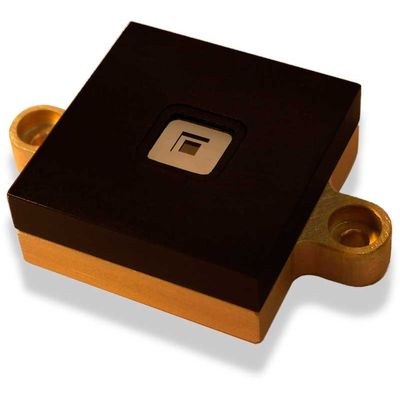

SSOC - Model A60 - Sun Sensor for Small Satellites with Analog Interface
SSOC-A60 device measures the incident angle of a sun ray in two axes. The high sensitivity is based on geometrical dimensions of the design. Every sensor is calibrated and characterized, and a look-up table is provided for its application. The use of a metal shield and a cover glass in the optical eye minimizes the ageing of the device under high radiation levels.
Sun Sensor on a Chip (SSoC), is based on MEMS fabrication processes to achieve highly integrated sensing structures for high accurate sun-tracking, positioning systems and attitude determination.
SSOC-A60 device measures the incident angle of a sun ray in two axes. The high sensitivity is based on geometrical dimensions of the design.
Every sensor is calibrated and characterized, and a look-up table is provided for its application. The use of a metal shield and a cover glass in the optical eye minimizes the ageing of the device under high radiation levels.

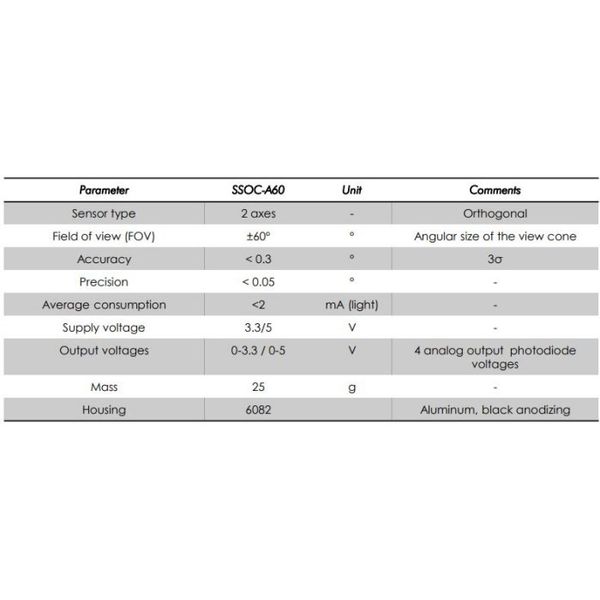

Data: Value
- Operating Temperature: -45º to 85º Celsius
- Radiation:
- >100 kRad (gamma)
- 6 MeV 3000 kRad (protons)
- Random vibration: 14,1g @ 20-2000 Hz
- Shock: 3000 g @ 1-100 ms
It includes MEMS technology of Solar MEMS with flight heritage Electronic components are space-grade.
More than 50 units included in more than 10 missions.
