Suncenter - Model DGS -Gas Pressure Booster System

• MOQ: 1 Set
• Brand Name: SUNCENTER
• Certificate: ISO/CE/SGS
• Warranty: 13 Months
• Packaging: by Plywood case
• Shipping Port: Shenzhen/Hongkong
• Payment: T/T, Western Union, Credit card.
• Transaction method: EXW, FOB, DDP, CIF, CFR
• Place of Origin: Guangdong Province, China (Mainland)
• Delivery Time: Within 10-15 working days after received deposit.

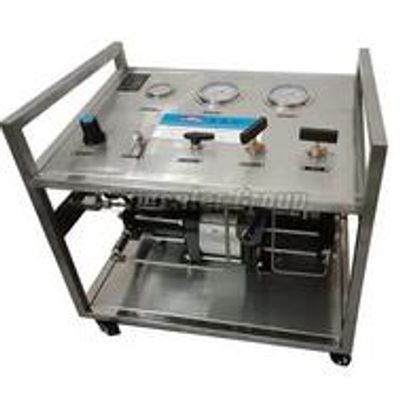

Suncenter - Gas booster systems are compact and delicacy solution tailored to customer specific requirements with gas boosters as well as all accessories to be fitted and installed in the frame or a closed cabinet.

To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator.

The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure.

Suncenter - Pneumatic booster system are used for oil free compression of clean shop air as well as industrial gases like Argon, Helium, Oxygen, Hydrogen and Nitrogen,CO2, etc..Driven air from 3 bar to 8 bar (from air compressor).

Operating pressure up to 160 MPa, for higher pressure, pump with double driven heads is an ideal option.

• Pressure test with gas
• Gas transfer and filling (Argon / Helium / Hydrogen / Oxygen / Nitrogen / CO2 / NO2 / CH4 / LNG / LPG / CNG / FM200 etc.)
• Charging of gas cylinder and accumulator with nitrogen
• Supply for isolating gas systems
• Gas assisted injection molding
• Transfer of oxygen cylinders
• Charging of breathing air bottles
• Leak test
• Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
• Safety valve adjusting
