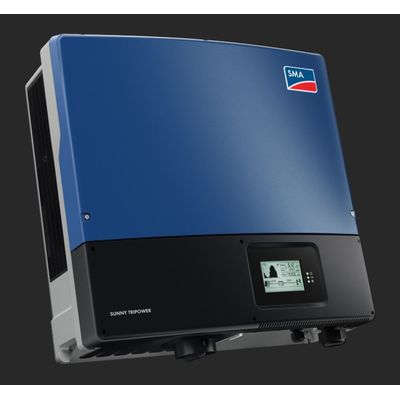

Sunny Tripower - Model 15000TL / 20000TL / 25000TL - PV Inverter
The Sunny Tripower 15000TL / 20000TL / 25000TL is the ideal inverter for large-scale commercial and industrial plants. Not only does it deliver extraordinary high yields with an efficiency of 98.4 %, but it also offers enormous design flexibility and compatibility with many PV modules thanks to its multistring capabilities and wide input voltage range. The future is now: the Sunny Tripower 15000TL / 20000TL / 25000TL comes with cutting-edge grid management functions such as. Integrated Plant Control, which allows the inverter to regulate reactive power at the point of common coupling. Separate controllers are no longer needed, lowering system costs. Another new feature-reactive power provision on demand (QonDemand24/7).
Efficient
- Maximum efficiency of 98.4 %
Safe
- DC surge arrester (SPD type II) can be integrated
Flexible
- Optional display
- DC input voltage of up to 1,000 V
- Multistring capability for optimum system design
Innovative
- Cutting-edge grid management functions with Integrated Plant Control
- Reactive power available 24/7 (QonDemand24/7)
The multifunction relay can be used for various purposes whereby you select one of six operating modes for controlling the multifunction relay: fault indication, increased self-consumption, load control, battery charging, fan control and signal transmission at the start of feed-in operation.
With the Modbus protocol interface, SMA makes the flexible integration of inverters possible. The benefits are obvious. Through the use of this well-known, public industry standard, other providers can integrate SMA devices into their systems without having to follow the SMA-specific inverter protocol. System data is transferred via this standardized protocol for further processing and can, as such, be flexibly integrated into any system regardless of the manufacturer. The importance for system planning: You can use SMA inverters in your preferred standard system at any time without having to take manufacturer specifics into account. Direct inverter integration into control room systems or the connection of inverters in building automation systems are both ideal applications.
Easy-to-Use
- Easy connection of SMA inverters
- Documented protocol standard for quick system integration
Flexible
- Manufacturer-independent interoperability of system components through uniform protocol language
Communicative
- Protocols uploaded directly to inverter
- Retrieval of detailed values possible
- High-performance Ethernet interface for the connection of data loggers or control room operated PV systems
Safety
- Modbus recognized as an international and widespread industry standard
- SMA, a SunSpec Alliance member, contributes to implementation of a protocol standard for PV systems
