Sunpal - 500 kWh Containerized Battery Energy Storage System

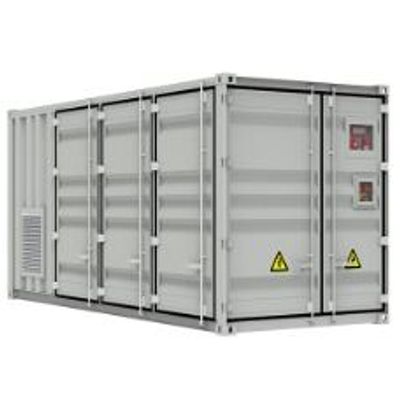

Sunpal offers a 20ft Containerized Battery Energy Storage System (ESS) with a capacity of 500 kW output and 1075 kWh storage, catering to commercial and industrial environments. Constructed with a modular design, the system allows capacity adjustments from 500 to 1075 kWh, making it suitable for applications such as peak shaving, grid response, and emergency backup. The system uses advanced LiFePO4 battery modules known for stable discharge and extended cycle life. Technical features include an independent charge/discharge control, real-time monitoring via cloud-based EMS, and IP65 enclosure supporting harsh outdoor usage. The ESS is compatible with smart grid operations, offering remote dispatch and power adjustment, while emphasizing safety through enhanced BMS protection and fire suppression measures. It is designed to integrate with existing renewable systems, providing an efficient energy strategy and reducing operational costs, presenting an ideal solution for businesses to improve energy management and reliability.
- LiFePO4 Battery Module, Stable Discharge Platform, Good Safety Performance, Long Cycle Life;
- 500–1075kWh Scalable Capacity with Modular Design
- Supports Peak Shaving, Backup, and Grid Response
- Independent Charge/Discharge Control Per Battery Group
- Cloud EMS with Real-time Alarms and Remote Updates
- IP65-rated for Harsh Outdoor Industrial Conditions
DC Data
- Cell type : Prismatic LFP
- Cell brand : HiGEE
- Cell life cycle : >8,000 cycles@ 0.5C,25℃
- Cell spec : 3.2V 280Ah
- String configuration : 1P224S
- Number of strings : 5
- String rated energy capacity : 200kWh
- DC rated energy capacity : 1000kWh
- Rated voltage : 716.8V
- Voltage range : 628V~806V
- BMS communication interface : Ethernet, CAN, RS485
- BMS communication protocol : Modbus RTU, Modbus TCP
AC Data
- Rated AC power : 500KW
- Maximum AC power : 550KW
- Rated AC voltage : 400V
- AC PF : 1 leading~1 lagging
- Output THDi : ≤3%
- Nominal grid frequency : 50/60Hz
- Isolation method : 3 Phase 4 Line Transformer
General Data
- Dimension w/o clearances (L*W*H) : 6,058*2,438*2,591mm
- Weight of whole system : <30MT
- Degree of protection : IP65
- Operating temperature range : -20~65℃
- Relative humidity : 0~95% (non-condensing)
- Max working altitude : 3,000m/9,842ft
- Cooling concept of DC hatch : HAVC
- Cooling concept of PCS hatch : Forced air cooling
- Fire extinguisher system : HFC bottle group
- Communication interfaces : RS485, Ethernet, GPRS
- Communication protocols : Modbus RTU, Modbus TCP
