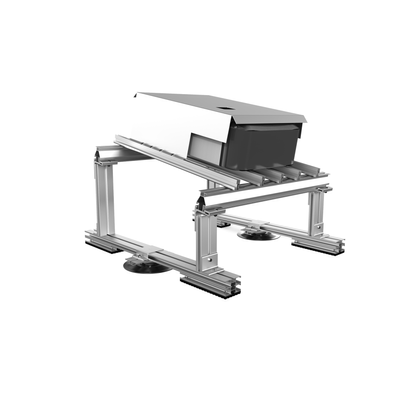

SunRail - Model IR -Inverter Racking System

EASY TO ASSEMBLE, LOTS OF ADJUSTMENTS
Our inverter racks are similar to our roof racking systems, and use the same simple hardware with one standard bolt type. Racks can be preassembled by Opsun prior to delivery.

COMPLETE TURN-KEY ENGINEERING SERVICES
Our engineers will review the building`s roof plans and create a custom inverter rack that matches the projects requirement. We provide detailed, project-specific plans that details installation steps. We can provide a P. Eng. Stamp for all U.S. states and Canadian Provinces.

HIGHEST STANDARD FOR ENGINEERING & SUPPORT
Our engineers use only the safest methods of calculation, to assure maximum solidity and durability of the structures. We have proprietary, recent wind tunnel tests with Western University, and we design using the latest Building Codes (ASCE-7-16, NBCC 2016, IBC 2018), as well as SEAOC PV2 notions of array size versus roof size to account for extraordinary vortices. Minimal deflection allowed on rails, and finite element analysis done with high-end 3D engineering software. Each zone ballast & anchors calculated individually. We find solutions to each unique challenge, and we react quickly if unforeseen events happen during construction (such as unmarked drains, roof equipments obstruction and last minute changes).

CAN BE MOUNTED ON OPSUN RACKING SYSTEM
Our designers can add the inverters directly on the Opsun PV racking rails, for reduced project costs, and compliance with module-level disconnect, in most states.

SUNSHADE OPTIONS
Aluminum cover (sun shade) can be added as an option to prevent UV degradation of the inverters.

FULL ALUMINUM DESIGN
6000 series aluminum and 304 stainless steel bolts and nuts guarantee maximum durability of the structure for decades.

FULLY ADJUSTABLE SYSTEM ON-SITE
All components can be slid in the rails` channels, to adjust for roof unevenness.
