Suntask - Model SCM02 -Heat Pipe Solar Collector

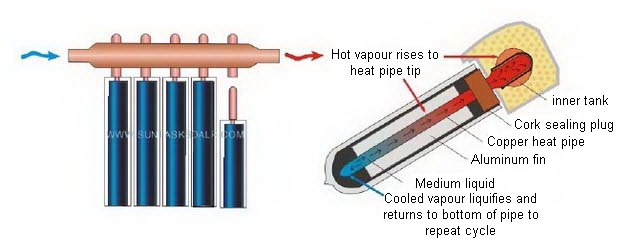

The pipeline is made of all the red copper and conducted by heat transfer medium liquid. Water can't flow in vacuum tubes and operated when confined. The manifold uses Aluminum alloy mould material of high strength with Air flow design. It is furnished in good style. Can withstand high pressure when it works. Module design, arbitrary combination, which can meet the demand of large water consumption.
- manifold (inner): red copper
- manifold (exterior): aluminum alloy
- glass tube dimensions: 58mm * 1800mm
- daily efficiency: ≥55%
- hail resistance: 25mm
- max pressure: 12 bar
- coating of vacuum tube: ALN/AIN-SS/CU
- heat pipe: anti-freezing > -35 degree
Suntask Special anti-freezing design make the heat pipe be suitable for cold area and long lifetime service.
A Suntask’s
B. The other companies’
Suntask Special anti-freezing design make the heat pipe be suitable for cold area and long lifetime service.
A Suntask’s
B. The other companies’
high performance heat pipe, cold resistance -45℃, highest stagnation temperature 280℃
