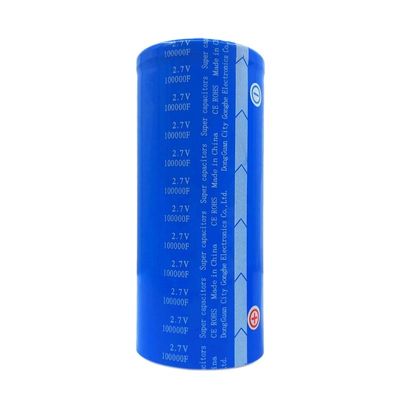

GHC - Model 2.7V100000F -Super Capacitor Battery Rechargeable Cylindrical Type

Model Name: 2.7V100000F Super Capacitor Battery Cells

Place of Origin: Guangdong, China

Working Temperature: -40 degree to +70 degree

ESR: 0.6mΩ

Leakage Current: ≤15mA

Cycle Time: 110,000 Times

Normal Current: 28A

Stored Energy: 60WH

Maximum Continuous Current: 150A

Maximum Peak Current: 300A

Size: 60x138 mm

Weight: 820g

Application: Telecom, Energy Storage, EV etc.

1. Long Life- our super capacitors can do 110,000 times or even more.
2. Safe- Until now we didn`t have find one explode accident.
3. Fast Charge & High Efficiency- Our capacitor can be recharged full in 5-10 minutes
4. Wide Temperature- Our capacitor temperature range can do from -40 degree to +70 degree
5. Lower Self Discharge Than Lithim Battery
6. Simple Pack Circuits
7. Smaller Size
8. Lighter Weight

A supercapacitor (SC), also called an ultracapacitor, is a high-capacity capacitor with a capacitance value much higher than other capacitors, but with lower voltage limits, that bridges the gap between electrolytic capacitors and rechargeable batteries. It typically stores 10 to 100 times more energy per unit volume or mass than electrolytic capacitors, can accept and deliver charge much faster than batteries, and tolerates many more charge and discharge cycles than rechargeable batteries.

Supercapacitors are used in applications requiring many rapid charge/discharge cycles, rather than long-term compact energy storage — in automobiles, buses, trains, cranes and elevators, where they are used for regenerative braking, short-term energy storage, or burst-mode power delivery. Smaller units are used as power backup for static random-access memory(SRAM).
