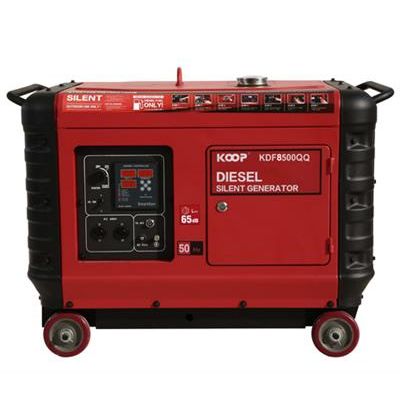

Koop - Model KDF8500QQ(-3) -Super Silent Diesel Generator

Supper silent

The sound level achieves international leading level; which overturns traditional image of Chinese silent diesel generator.

Unique Design

New structure design, Koop brand unique out looking with red and black color.

U type air flue design

With new U type air flue design, all inlet and exhaust air go through it, achieves the effect of sound insulation.

Super strong structure

New design canopy with thicker base frame to enhance generator structural strength, meanwhile achieve the effect of sound insulation and vibration reduction.

Smooth output

100% copper alternator, class F insulation, high conversion efficiency, smart AVR controller ensures stable voltage and less voltage waveform distortion

• Rated Frequency[Hz] 50     60
• Rated Voltage [V] 220,230,240,110/220,115/230,120/240,220/380,230/400,240/415
• Rated Output Power[KVA] 5.5 ( 6.9  )  6.0(  7.5 )
• Max Output Power[Kva] 6.0(7.5   )    6.5 ( 8.1  )
• Phase Number  Single Phase / Three Phase
• Excitation Mode  （AVR）
• Power Factor  Φ 1(0.8)
• Insulation Grade F
• Fuel Tank Capacity[L] 14.5
• Noise Level [Db]( @ 7m  )  63
• Engine Model   KD192FE
• Starting System  Electric Starting
• Engine Type              1-Cylinder ,4-Stroke, Air-cooled,Veritical
• Broke * Stroke[mm] 92*75
• Displacement    0.499L
• Compression Ratio 19.5：1
• Rated Rotation Speed[rpm] 3000  3600
• Rated Power[Kw] 7.6        8.6
• Lube[L] 1.65
• Fuel Consumption[g/kwh]
• Fuel Type    0#(summer), -10#(winter) Diesel oil
• Lube  SAE10W30 ( above CD grade )
• Low Oil Pressure Alarm System with
• Optional Standard  ATS
• Remote control
• Overall Diemension [mm]( L*W*H) 995*645*750
• Net Weight[Kg] 210
