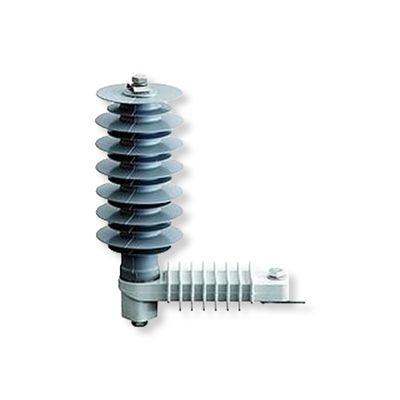

Ensto - Model NX7230203 -Surge Arrester

Dimensions

• Weight :1 kg
• Length :165 mm

Standards

• Standards :IEC 60099-4

Temperatures

• Operating temperature :-50 ... 50 °C
• Storage temperature :-20 ... 70 °C
• Ambient temperature :-50°C to +50°C

Features

• Site pollution severity class :e (IV)
• Range of rated voltage (Ur) :3…36
• Long duration current impulse withstand :300 A
• Rated short circuit current (Is) :20 kA
• Specified long-term load (SLL) :100 Nm
• Specified short-term load (SSL) :125 Nm
• Thermal charge transfer rating (Qth) :1.1 C
• Option 1 :- S3D2 option = insulating bracket with built-in disconnector - IF option = flag type sensitive fault indicator - IB option = wristband type fault indicator - P2 option = naked pedestal - IP2 option = insulated pedestal - Earth braid - Mounting bracket for cross-arm - Bird guard cap
• Option 2 :- Option S3D2 = Support isolalant avec déconnecteur - Option IF = Indicateur fin de vie mécanique - Option IB = Indicateur de défaut du type de bracelet - Option P2 = Piédestal non équipé - Option IP2 = Piédestal isolé - Tresse de terre - Support de montage sur ancrage de ligne - Protection avifaune
• Nominal discharge current (In) :10 kA
• Arrester Classification-Designation :DH
• Line discharge class :1
• Repetitive charge transfer rating (Qrs) :0.5 C
• High current impulse withstand :100 kA
