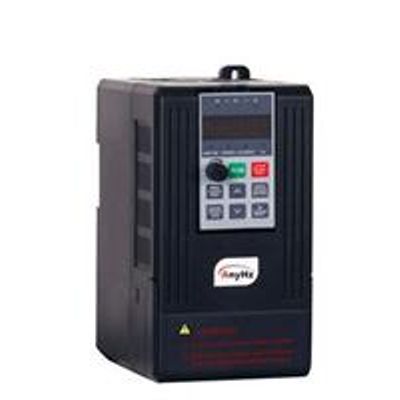

Model FST-610 - SVC Inverter for General Application
Power range：0.4-2.2KW,220V,single phase;0.75-630KW,380V,three phases. Application area： pump,fan,air compressor,central air-conditioner,oil pump,conveyor,main shaft of CNC machine, ball mill machine, musical fountain,etc.
Most popular related searches
automatic voltage regulator
air compressor
voltage regulation
voltage regulating
voltage regulator
inverter
Structural features:
- Optimized layout design makes the machine to be smaller and lighter. It is easy for transportation, installation and maintenance.
- Perfect cooling design ensures lower temperature rise and long life.
- High anti-interference ability due to the circuit separation for stong current and weak current.
- Combined module for 15KW or below with high reliability.
Software features:
- G/P type are in one for extensive application.
- 3 kinds of control: V/F control, SVC control and torque control.
- High starting torque: 180%, 0.5 Hz.
- Multi-step speed control, simple PLC control and PID control.
- Programmable input and output terminals.
- Non-stop operation at momentary power failure.
- Multiple sources of frequency reference.
- Automatic voltage regulation(AVR).
- Frequency skip function.
- Oscillation suppression function.
- Perfect function of fault protection.
