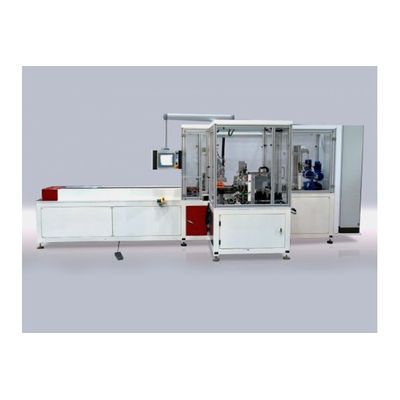

Mondragon Assembly - Model TS600LT - Tabber and Stringer

Mondragon Assembly’s Tabber&Stringer is functionally simple, but precise, reliable and easy to use at the same time.

Thanks to our knowledge and experience in technological processes and solar equipment, our team offers modular designs with advanced functions, low cost and high performance.

The Tabber&Stringer has four main remarkable elements: Cell quality control using artificial vision, advanced control of the IR soldering process, axles equipped with servo-drives and ribbon power systems of 2, 3, 4 and up to 5 bus bar.

• Vision control systems to see the quality of the cells so that defective cells can be detected and removed.
• Control of cell temperature to ensure good soldering.
• Time control for correct self-diagnostics.
• Unlimited number of process formulas, where the same model or module can assume different process parameters, depending on the materials used.
• Flexibility for processing different cell models or sizes with a very short change time. We work with cut cells. Up to 1/6 of 6” cells.

• Contactless IR soldering so that stress is not generated in the cell.
• Flux dispensing onto the bus bar without contact with the cell.
• Anti-camber systems to improve the ribbon’s alignment.
• Artificial vision
