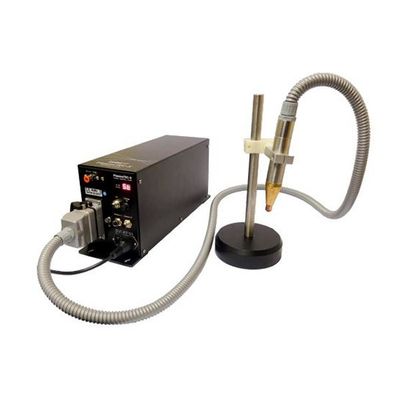

Tantec - Model PlasmaTEC-X OEM -Atmospheric Plasma Treatment System

The versatility of this unit allows for use in fully integrated robotic cells, as a standalone unit, or in almost any production line. The PlasmaTEC-X OEM is based on the technology of the PlasmaTECdevice.

The PlasmaTEC-X OEM can be used without the PlasmaREMOTE control unit. The target group is mainly mechanical engineers and OEM customers who want to use a single device only and do not require a control unit.

The control and monitoring of the device can be achieved through the I/O interface with 24 V signals. An analysis of the operating conditions is also possible through a BUS interface.

Easy to install
The system must be connected to mains power and compressed air, no adjustment of air or power is necessary.

Standby airflow
The airflow is controlled electronically which allows for switching the on/off, A minor flow of air is part of stand-by, to avoid dust being attracted to the discharge nozzle.

Potential free discharge
Allows treatment of both conductive, non-conductive as well as semi-conductive surfaces.

Compact and Lightweight
Being compact and lightweight makes the PlasmaTEC-X easy to integrate into almost any production line or robot cell.

High-speed production
High power Plasma Discharge allows for high line speeds.

Output discharge control
Should the power drop below a pre-set level, the generator offers necessary alarm signals.

Digital and analog control signals
A large number of various signals are available on a digital interface to control and monitor the Plasma discharge at all times.

Automatic discharge air regulation
No matter the length of the power/air cable, the generator will adjust automatically to ensure the correct air pressure and flow.
