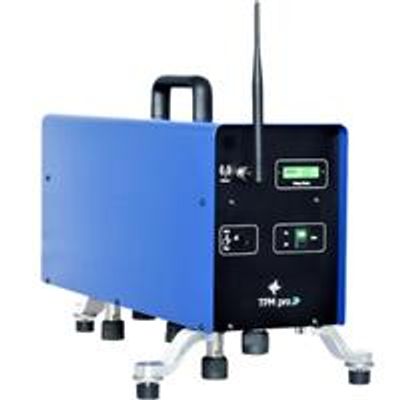

Ntek - Model TPMPro - Tapping Machine
FromNtek
New TPM-PRO tapping machine is the result of a teamwork of Italian technicians, specialized in the design and realization of measurement tools for acoustical impact calculation. A rigid and solid structure has been designed specifically to guarantee a better transportability and make it one of the lightest on the market.
Most popular related searches
Soft bag and retractable pins guarantee an easy transportability and assure the best comfort during measurements.
Lithium batteries have an operative capacity of 3 hours. Wireless remote control permits the user to turn on and turn off the machine in remote: transmission ray is 80 meters in open field.
Code : 50300
STANDARD EQUIPMENT
- Wireless Standard 433 MHz remote control
- Soft carry bag with shoulder strap
- Antenna
- Lithium batteries
- Electricity supply cable 220V
- 73 mm calibrator
- Optional: New HP 866 MHz Remote Control
CONFORMITY LAWS
- UNI EN ISO:
- 10140-3, ISO 140-7, ISO 16283-2, ASTM E492, ASTM E1007.
- Conform to CE directives
TECHNICAL FEATURES
- Dimensions: 160 x 290 x 520 mm
- Weight: 11 kg with batteries, antenna and remote control
- Supports: 3 pins retractable and adjustable in height
- Power: 100 ÷ ¬240VAC, 50/60 Hz
- Consumption: 220VA
- Antenna
Battery
- Rechargeable Lithium batteries
- Duration: 3 hours
- Battery derating: <5% loss in capacity per 900 discharge/charge cycles
- Battery charging time: 2 hours
Hammers
- Five in line hammers
- Interaxcle spacing: 100±3 mm
- Weight: 500±6 g
- Diameter: 30±0.2mm
- Front radius: 500 mm
- Curve: ~ 500 mm
- Tapping rate: 10 impacts per second, rpm controlled by encoder feedback loop
- Sequence: 1, 3, 5, 2, 4
- Effective fall height: 40 mm adjustable ±5 mm
Remote control
- Wireless: 433 MHz
- Transmission ray: 80 m in open field
