TEHAG - Model TENOR -Spiral ­Silencers

SHARE

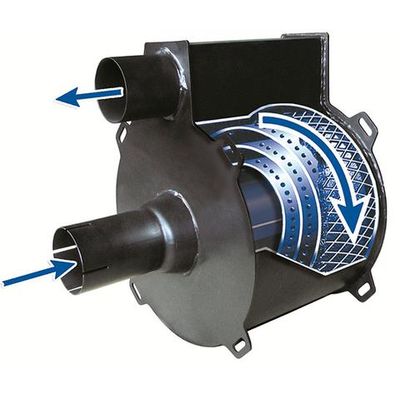

The TENOR Spiral Silencer System is the ideal solution wherever you need a high level of silencer performance coupled with a small installation space. The spiral-shaped exhaust chamber on the inside of the silencer housing provides the grea­test possible curved surface, which serves to effectively break up linear sound waves. The system can be used practically anywhere. The TENOR Spiral Silencer is optimally suited for use in vehicle construction and mechanical en­gineering systems as well as in plant engineering systems or the shipbuilding in­dus­try to sustainably re­duce noise emis­sions from diesel, petrol and natural gas engines.

Most popular related searches
natural gas engine
emergency power
CHP plant
gas engine
  • Compact design with a high level of silencer performance
  • TSE series with a silencer performance of up to 28 dB(A)
  • TSB series with a silencer performance of up to 33 dB(A)
  • Material quality: cold-rolled aluminium-plated steel sheeting or stainless steel 1.4301 (V2A)/1.4571(V4A)
  • Sheet thickness of 1.5 mm from models up to 50, and 2.0 mm for models 60 and higher
  • H eat-resistant and/or seawater-resistant coatings for temperatures up to 650 °C
  • Stainless steel model can be electropolished, pickled or glass-bead blasted upon request
  • Individual adjustments based on installation space and special designs possible
  • Production capacity for anything from stand-alone units right through to medium-sized series of up to 10,000 pieces
  • 15 default system sizes in 9 various designs {TSE, TSB, PR, PL, TR, TL, V)
  • As desired aluminium-plated sheet steel, 1,5- 2 mm, heat resistant black painted or stainless steel up to 1.4301, or rather each time electropolished up to 1.4571
  • Suitable for engines from 8850 kW
  • Flexible mountings 360° positioned as required
  • Individual connectings, welding ends, plug socket, V band connecting or flange
  • individual adaptation an construction spaces, special custamized designs possible
  • Manufactoring of individual items and small to medium-sized series up to 10.000 pieces
  • Construction machinery
  • Railway vehicles
  • Ships
  • CHP plants
  • Generators and emergency power systems
  • Lorries and buses
  • Industrial vehicles
  • Agricultural vehicles
