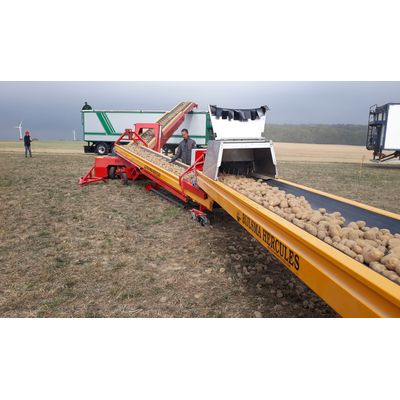

Bijlsma Hercules - Model TEL 2-607 /807/808-80 - Telescopic Conveyor
The Bijlsma Hercules telescopic conveyors are a very flexible link when sorting your crops, because they are adjustable in length and because the two conveyors can be pivoted to each other at any desired angle. The falling height between the two conveyors can be reduced to a minimum with a threaded adjuster on the travelling carriage. Your product is therefore in good hands with our telescopic belts.
A sophisticated tandem wheel construction makes the telescopic tires extremely manoeuvrable. One person can relocate the conveyors smoothly and easily or adjust the height. The length is adjusted by means of a hand winch. The switchbox is mounted on the travelling carriage makes it possible to operate them from two sides. Since both conveyors are electrically connected to each other via a special cable guide, only one cable is needed for the power supply.
- Steering rod at the front wheels with which the machine can be manoeuvred easily into the smallest corners.
- Round input funnel for easy set-up, so that the product can be deposited onto the machine from each side.
- Oscillating tandem-wheels for stable support.
- A large, central placed cabinet for serving the machine ergonomically.
- Rubber castor wheels and air wheels, each Ø 200.
- Castor wheels with brakes, for stable support end easy movement of the machine.
- Height adjustment with pin / hole connection so that the machine can be set to the correct height.
- BLC Line Module System.
- IONS
- Electric length adjustment.
- Variable speed control by a frequency converter on the first conveyor.
- Variable speed control by a frequency converter on both conveyors.
- Castor wheels Ø 250 mm instead of standard Ø 200 mm.
- Discharge height 1,700 mm by means of a cylinder with hand pump.
- Connection part for mounting on the coupling yoke of the storage loader.
- Line module cables for the BLC line module system.
