Terix - Hydraulic and Power Control Module for Anaerobic Digestion
TERIX-Envirogaz’s hydraulic and power control modules for anaerobic digestion allow for waste-heat recovery from the digestion process and complete management of structured organic fluids (SOFs) through various digestion stages and temperatures. They provide the operator with a very flexible, yet completely automated process.
Benefits:
- Recovery of waste heat from the process
- Controls many temperatures (37°C, 50°C, and 70°C)
- Organizes the flow of structured organic fluids (SOFs) while being versatile regarding process directional and sequential choices
- Allows for simplified digesters maintenance without affecting operations
- Easy integration through preassembled design
- Rugged Variable-speed pumps for continuous input shredding
HPC Module Characteristics:
- Can independently manage up to three temperatures (37°C, 50°C, and 70°C) through selected reservoirs
- Pumping systems can easily shred SOFs without affecting pump durability and performance
- Their flexibility allows for organization of SOFs flow based on various directional and sequential choices
- Can process quantities of source segregated organic material from 10,000 to 80,000 cubic tons, based on client needs
- Module-integrated industrial hydrocyclone reduces system wear and need for maintenance
- All equipments needed for process are located outside the reservoirs, and bolted elbows greatly simplify maintenance
- Designed for continuous flow of SOFs to prevent formation of floating caps and crusts inside the reservoirs, thus optimizing the capture process
- Easy and safe system inspection through optimized design and properly located accesses
HPC Module Specifications
Exchanger Type:
- Power: based on client needs
- Used design: Tube-Tube
- Material: Type 316 (schedule #10) stainless steel
- Heat transport coolant: 50/50 glycol-water
Pump type:
- Shredding
- Variable speed motors
- Integrated water head
Structure and Assembly:

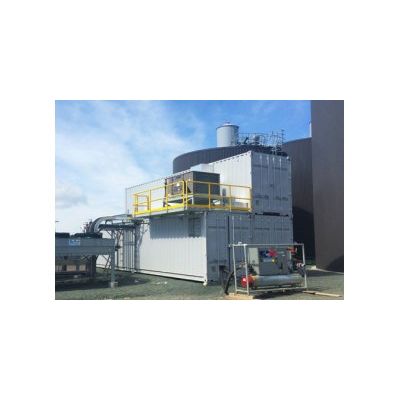

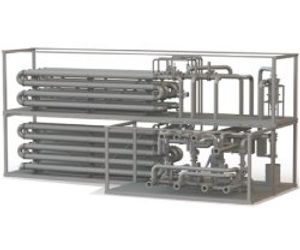

- Pre-assembled modules on a variable length platform (based on client needs) or pre-assembled module inside an isolated sea freight container
