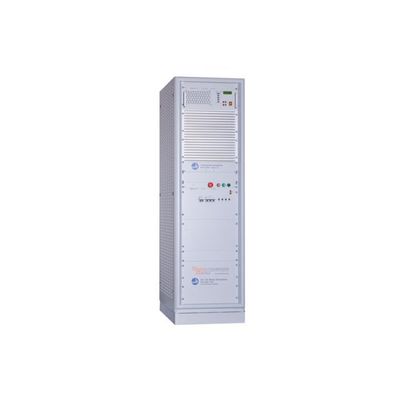

SPS - Test Systems for Solar Inverters
From Photovoltaic Test and Simulation Systems
Due to the climate change the use of regenerative energy sources is promoted increasingly. The use of solar energy is becoming more and more important. The ideal test system for solar inverters consists of a photovoltaic solar cell simulator (PVS), a mains supply system simulator (DM 90000/PAS) and a power recuperation unit (PRU) which reduces the energy consumption of the entire system by app. 70%.
Details
For testing the anti-islanding function of solar inverters according to the IEC62116 the AC resistor load RLC is available. User friendly and convenient testing and reporting is possible with the software package SPS_Inverter_Test, compliant to the standards but also far beyond.
Operating ranges are:
- U: 0…1500V
- I:0…350A
- P:0…400kW
- Regulating speed < 100µs for the evaluation of the MPP tracking capabilities
