Neware - Model CE6000 - Testers for Battery Cell, Module and Pack
As more and more customers start to use Neware CE6000 series testers, they realize this Neware new product series will definitely take the battery test to the next level.
- For battery cells, modules and packs: Neware CE6000 has 5V/6V, 20V, 60V up to 1000V models, which work for battery cells, modules and packs.
- High power density: 64 channels 5V75A or 8 channels 5V600A on a 60*80*180cm cabinet.
- Regenerative: Discharge energy could be used directly by charging channels or can be returned back to the power grid.
- High power efficiency: Whole system power efficiency up to 75%
- High accuracy: Voltage accuracy up to 0.02%, current accuracy up to 0.05%
- Modular design: Easy to assemble and maintain.
- Quick response time: Current response time < = 5ms, current switch time < = 10ms, this makes CE6000 is great for pulse and driving simulation tests.
- Sampling frequency: Up to 100Hz(10ms per data).
- Channels parallel: Channels(max. 4) can work in parallel mode for higher current.
- Pulse mode: Min. pulse width 100ms.

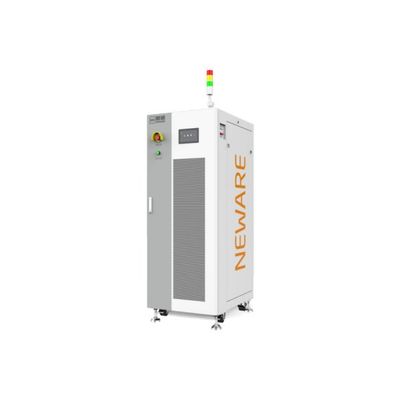

Neware CE-6000 test system is a high-precision charge-discharge machine developed for high-power battery module&pack testing. It has the characteristics of high dynamic response speed, high stability accuracy, flexible configuration of multiple channels, and it supports pulse test, cycle life test, and driving simulation tests, etc. The Neawre CE-6000 system is regenerative, which means the discharged energy can be used by other charging channels or can be returned back to the power grid if there’s still extra discharged energy.
A bidirectional high-frequency DC conversion topology is used, combined with a high-performance multi-channel 24-bit AD conversion chip. The sampling rate and resolution of the CE-6000 system are higher than that of the traditional machines.
