PowerFilm Solar, Inc.

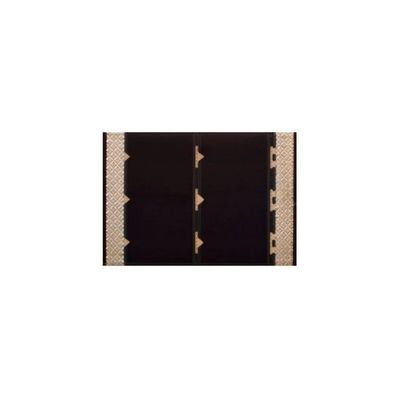

PowerFilm - Model LL200-2.4-37 -Thin-Film Amorphous Silicon Flexible Indoor Solar Module
This thin-film amorphous silicon flexible indoor solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect artificial lighting in indoor settings such as warehouses, offices, and retail spaces.
Most popular related searches
solar module
flexible solar module
silicon solar module
flexible solar
solar module laminator
solar panel
solar laminator
solarization film
solar film
solar lighting
Electrical Specifications:
Max Voc all light levels = 3.7V
200 Lux
- Power: 0.068mW
- Operating Voltage: 1.6V
- Current: 0.043mA
- Average Voc: 2.4V
- Isc: 0.06mA
1000 Lux
- Power: 0.449mW
- Operating Voltage: 2.1V
- Current: 0.214mA
- Average Voc: 2.7V
- Isc: 0.2mA
Physical Specifications:
- Dimensions: 54.0 x 36.5 (mm) / 2.13 x 1.44 (in)
- Weight: 0.02oz / 0.55g
- Thickness: 0.22mm
