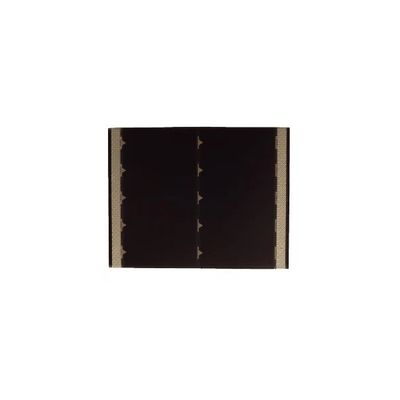

PowerFilm - Model LL200-2.4-75 -Thin-Film Amorphous Silicon Flexible Indoor Solar Module

This thin-film amorphous silicon flexible indoor solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect artificial lighting in indoor settings such as warehouses, offices, and retail spaces.

Most popular related searches

solar module

flexible solar module

silicon solar module

flexible solar

solar panel

solar module laminator

Electrical Specifications:

Max Voc all light levels = 3.7V

200 Lux

Power: 0.289mW
Operating Voltage: 1.6V
Current: 0.181mA
Average Voc: 2.4V
Isc: 0.2mA

1000 Lux

Power: 1.899mW
Operating Voltage: 2.1V
Current: 0.904mA
Average Voc: 2.7V
Isc: 1.2mA

Physical Specifications:

Dimensions: 94.0 x 73.0 (mm) / 3.70 x 2.87 (in)
Weight: 0.04oz / 1.20g
Thickness: 0.22mm
