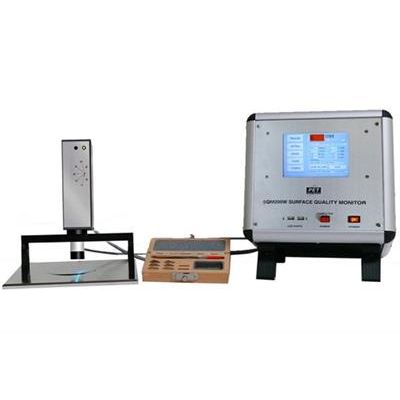

PET - Model SQM200W -Thin Film Monitor Single Channel Systems
A single channel system for measuring surface cleanliness or monitoring absence/presence of organic/inorganic thin films or measuring the relative thickness of very thin films. System features include upper and lower acceptance limits, go/no go indicators and analog signal output.
Most popular related searches
Control Unit Model #60499
- Computer Controlled Digital System
- Flat Panel Color Display
- Automatic Data Saving Capability
- Programmable gain (1-2-4-8) and Upper/Lower acceptance limits, Go / No Go Indicator
- Peak Detect feature with automatic reset
- USB Ports
- Analog Output Signal (0-10V)
- Digital I/O for process control
Sensor Stand Model #60791
- Sensor clamp
- Manually operated micrometer for sensor height adjustment, 1” (25 mm) stroke
- Mercury Vapor UV Lamp
- Gain Control Switch, 5 settings
- Inspection Area 0.525” (13.3 mm) Diameter. Can be modified with apertures.
- Accept/Reject (Go/No Go) LED Indicators
Aperture Set Model #60561
- 6 Apertures with different inspection area openings
- Tweezers
- Gain Switch adjusting tool
- Allen wrench and mounting screws
- Case
