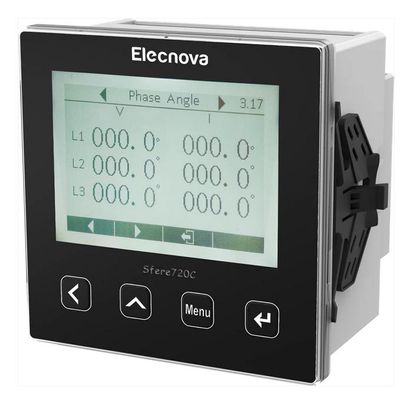

Elecnova - Model Sfere 720C -Three Phase Energy Analyser Meter Panel

Parameters:

measurement of a multitude of electrical parameters for a complete and precise analysis of the circuit:
– active and reactive energy, imported and exported
– voltage
– current
– active, reactive and apparent powers
– power factor
– frequency
– demands
– extreme values
– Imbalances
– harmonics up to 63rd
– Voltage SAG and Swells,Waveform capture, waveform display and phasor diagrams

2 relay outputs:

Controlled via Modbus or programmable for MIN / MAX parameter settings.

Additional modules:

Possibility of installing up to 4 Max modules at the rear of the meter to add additional communication, measurement or management functionalities.

Display:

The large display ensures clear data presentation in the form of diagrams or vector graphics. Navigation is intuitive thanks to clearly identifiable submenus.

Remote Monitoring:

A complete software is supplied with the device, allowing to view the data and control the relay outputs remotely from a computer.

Programmable alarms / Relay outputs:

The relay outputs, which can be controlled by Modbus command or programmed when a parameter threshold is reached, enable alarm or load shedding functions to be carried out.

High Accuracy:

class 0.2S for active energy and 0.2% for instantaneous measurements.
