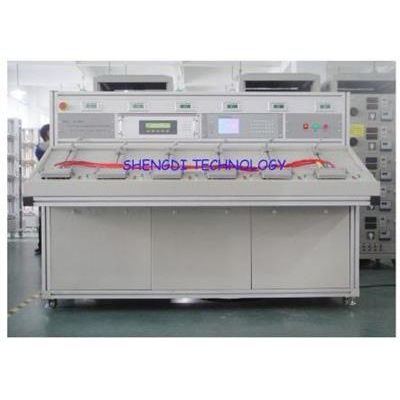

Shengdi - Model HS-6303 -Three Phase Energy Meter Test Bench
HS-6303 Three Phase Energy Meter Test Bench,6 Position,3P3W,3P4W CT meter,0.05% Class,Max.120A output. Bench Accuracy: 0.05% Class. Standard Meter: 0.05% Class (HS-5300). Positions: 6 METERS. Current Source: 0~100A,max.120A (For testing 3-phase CT meter,3p3w,3p4w, 0.05% Class,6 Position).
Most popular related searches
- 1.IEC60736,IEC62052,IEC62053...
- 2.Reference Standard Meter, HS-5300 0.05% accuracy class
- 3.Position: 6 meters
- 4.Current Power source:
- Output range: 3*1mA~120A
- Phase angle: 0~360deg.
- Distortion : ＜0.5%(Liner load)
- Stability:＜0.05%/180s
- Output Capacity: 900VA
- 5.Voltage Power source:
- Output range: 3*30~300V
- Phase angle: 0~360deg.
- Distortion : ＜0.5%(Liner load)
- Stability:＜0.05%/180s
- Output Capacity: 300VA
- 6.Harmonic: 2-21st,content ＜40%
- 7.Start Current Output: 1mA(Min)
- 8.Communication Port:RS485
- 9.Test function: Basic error,Standard deviation,Creep test,Start up,Forward & Revese test,Harmonic test,Influence Test,etc.
- 10.Power supply: 3*220V/380V +/-10%,50Hz.
