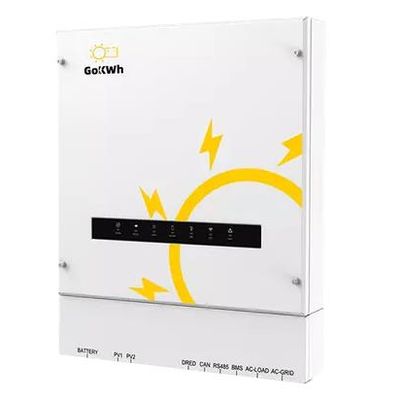

GoKWh - Model 10K -Three Phase Hybrid Inverter
GOKWh`s inverter supports seamless switching between gird-connected and off-grid, intelligently manage energy devices, and support WiFi and GPRS wireless monitoring modes. Adopt IP65 protection grade, suitable for harsh environment, long-term continuous and reliable operation.
PV Parameters
- Maximum Output Power: 13000W
- Maximum DC Voltage: 1000V
- Maximum Input Current: 11/ 11A
- DC Overcurrent Protection: 14A
- MPPT Voltage Range: 330V~880V
- MPPT Input Circuit Number: 2
Battery Parameters
- Battery Type: Lithium battery
- Battery Voltage Range: 200V~800V
- Rated Battery Voltage: 500V
- Maximum Charge and Discharge Efficiency: 98%/ 98%
- Maximun Charge and Discharge Current: 25A/ 25A
AC Side Parameters
- Rated Power Grid Power: 10000W
- Power Grid Voltage Range: 400V~230V; 380V~220V
- Rated Power Grid Frequency: 50/ 60Hz
- Maximum AC Input/ Output Current: 16A/ 16A
- Power Factor: -0.8 overexcited, 0.8underexcited
- THDi: <3%
Load Side Parameter
- Rated Power: 10000W
- Maximum Output Current: 16A
- Overcurrent Protection Rated: 14.5A
- Power Factor: -0.8 overexcited, 0.8underexcited
- THDi: <3%
Efficiency
- MPPT Power: 99.9%
- European Efficiency: 97%
- Max. Efficiency: 98.6%
Conventional Parameters
- Dimension (Width/Hright/Thickness): 548*550*188mm
- Weight: <40kg
- Operating Temperature: -25?~60?
- Noise Index: <30dB
- Relative Humidity: 0%~95%
- Operating Altitude: <2000
- Cooling Mode: Natural Cooling
- Protection Level: IP65
Protective Function
- Anti-islanding Protection: Yes
- DC Switch (PV) : Yes
- Output Overcurrent Protection: Yes
- Output Overvoltage Protection: Yes
- Output Short Circuit Protection: Yes
Characteristics
- Display: LED
- Communication Interface: RS485/ WIFI/ GPRS
- Quality Guarantee: 5 Years Product Warranty / 10 Years Performance Warranty
Faster & Bigger
The charging and discharging speed is faster, the charging and discharging current is bigger.
High Level Protection
IP65, suitable for indoor and outdoor, reliable operation in the face of extreme weather.
Intelligent Management
Support WiFi and GPRS wireless monitoring, and realize unmanned operation without EMS.
Ultra Fast Switching
On-grid and off-grid seamless switching, and on/off grid swith time < 1 Oms.
Superior Performance
Strong output capacity and high load adaptability. Full power output in off grid state.
