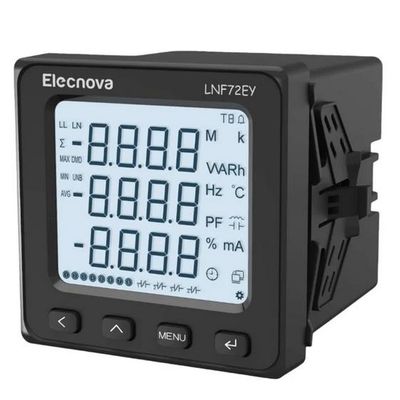

Elecnova - Model LNF72EY - Three Phase Multi Function Panel Meter
FromElecnova Europe
LNF72EY Three Phase Multi function panel meter 72x72mm CT operated with Pulse output & RS485 Modbus. Measurement Capacity: Supports single-phase or three-phase circuits, with or with a neutral connection. Auxiliary Power Supply: Operates on a range of 80 to 270 Vac. Connections: connects to current transformers via -/1A or -/5A and/or voltage transformers. Accuracy: Active energy measurement with an accuracy class of 0.5S.
Most popular related searches
multifunctional power meter
current transformer
energy measurement
power meter
power factor
multifunction meter
Physical Characteristics:
- Mounting: Panel mount 72x72mm
Communication Capabilities:
- Transmitters: Equipped with active energy pulse transmitters.
- Modbus Port: Fully programmable for parity, speed, and frame settings.
Standards and Certifications:
- Conformity: Complies with CE, RoHS, and REACh standards.
- Compact Design: Efficiently measures single phase or three-phase loads.
- Remote Monitoring: Allows viewing of measured parameter data through a free, remote software.
- High Accuracy: Ensures precise measurement with a class 0.5 for active energy.
Single phase or three phase Load Measurement: Provides detailed analysis of electrical quantities such as:
- Active and reactive energies (both imported and exported)
- Voltage
- Current
- Active, reactive, and apparent powers
- Power factor
- Frequency
- Demand
- Harmonics up to the 31st
