Elecnova - Model LNF96EY - Three Phase Multi Function Panel Meter
FromElecnova Europe

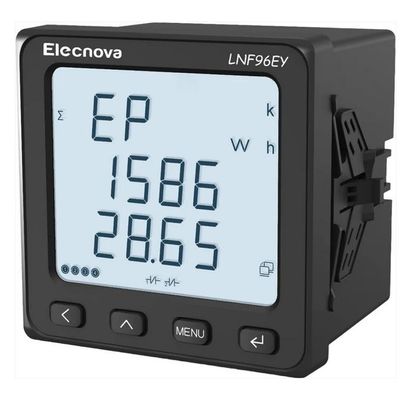

LNF96EY Three Phase Multi function panel meter 96x96mm CT operated with Pulse output & RS485 Modbus.
Most popular related searches
multifunctional power meter
current transformer
energy measurement
power meter
power factor
multifunction meter
electrical measurement
Electrical Specifications:
- Measurement Capacity: Supports single-phase or three-phase circuits, with or with a neutral connection.
- Auxiliary Power Supply: Operates on a range of 80 to 270 Vac.
- Connections: connects to current transformers via -/1A or -/5A and/or voltage transformers.
- Accuracy: Active energy measurement with an accuracy class of 0.5S.
Physical Characteristics:
- Mounting: Panel mount 96x96mm
Communication Capabilities:
- Transmitters: Equipped with active energy pulse transmitters.
- Modbus Port: Fully programmable for parity, speed, and frame settings.
Standards and Certifications:
- Conformity: Complies with CE, RoHS, and REACh standards.
Single phase or Three phase Load Measurement: Provides detailed analysis of electrical quantities such as:
- Active and reactive energies (both imported and exported)
- Voltage
- Current
- Active, reactive, and apparent powers
- Power factor
- Frequency
- Demand
- Harmonics up to the 31st
- Compact Design: Efficiently measures single phase or three-phase loads.
- Remote Monitoring: Allows viewing of measured parameter data through a free, remote software.
- High Accuracy: Ensures precise measurement with a class 0.5 for active energy.
