PCE - Model PCE-830-1-ICA - Three-Phase Power Analyzer for Electrical Parameter Measurement

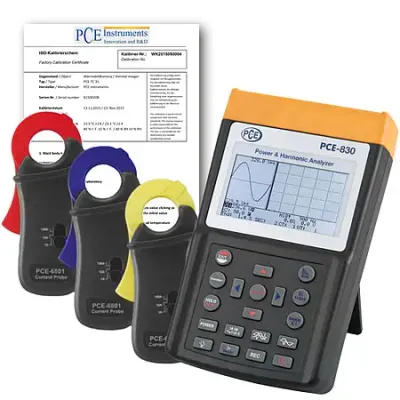

The PCE-830-1-ICA is a three-phase power analyzer utilized for assessing electrical parameters across one to three phases of alternating current (AC) systems. The device measures vital aspects such as voltage, current, frequency, harmonics, and power, offering insights into harmonic values, interharmonics, and asymmetries as outlined in the EN50160 standard. Equipped with a high-resolution, backlit LCD, it can display up to 35 different parameters simultaneously. The analyzer can store extensive data, capable of logging up to 17,470 readings in a three-phase setup or 52,400 readings in a single-phase configuration. The measurements can be processed via the included analytical software. The analyzer package includes essential accessories such as amp clamps, alligator clips, safety lines, a mains adaptor, and a carrying case, ensuring users can begin measuring and analyzing data immediately. An ISO-compliant calibration certificate is also provided, although optional laboratory calibration can be requested for enhanced accuracy.The 3-Phase Power Meter / 3-Phase Power Analyzer is used for measuring one to three phases of electrical quantities for alternating current (AC). This 3-Phase-Power Meter also measures such parameters as voltage, current, frequency, harmonics and power as well as indicating, according to standard EN50160, harmonic values, interharmonics and asymmetrics. Interference, such as interruptions, leaks, overloads or transience (from 16µs) are detected with their corresponding values. The backlit LCD, with high resolution, can show up to 35 parameters simultaneously. It can have up to 3 clips attached at the same time. In data logger mode, it can save up to 17,470 readings (3 phases / 4 conductors), in a simpler set up (1 phase / 2 conductores) it can save up to 52,400 readings, split into 85 groups. All this makes the 3-Phase-Power Meter the ideal instrument for taking measurements over long durations. Measurement values obtained can be sent to a computer and be processed with the analysis software which comes included. The device comes with everything needed to be measuring and analysing from the moment the device arrives. Although the 3-Phase-Power Meter comes calibrated from the manufacturer, an optional laboratory calibration and certificate, that meets ISO standards, can be ordered seperately with the device or when a recalibration is required.
Analysis of a network of 3 phases/4 conductors, 3 phases/3 conductors, 1 phase/2 conductors, 1
phase/3 conductors
Measures effective real value (V 123 and I 123)
Measures active power (W, KW, MW, GW)
Measures apparent and reactive power (KVA, KVAR)
Power Factor (PF), phase angle (Φ)
Measures energy and work (Wh, KWh, KVARh, PFh)
Measures current from 0.1mA to 3000A, allowing for the reserve power of a factory to be determined
Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors])
CT conditions (1 to 600) and PT (1 to 3000) are programmable
Indicates current wave forms and voltage overlap.
512KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17,470 readings using the system of 3 phases / 4 conductors)
Indicates wave forms, efficiency parameters and harmonic distortion
Backlit LCD wth dot matrix
Average power (AD in W, KW, MW)
Maximum power (MD in W, KW, MW) with the programmable period
Analysis of harmonic distortion up to a curvature of 99
Indication of up to 50º form of harmonic wave
Indication of the wave form with maximum value (1024 readings / period)
Analysis of absolute distortion (%THD-F)
Diagram of graphic equilibrium with parameters of a 3 phase system
Detects up to 28 transistors (time and cycles) with a programmable threshold (%)
Relation of 3 phases of voltage or asymmetrical current (VUR)
Factor of 3 phases of voltage and asymmetrical current (d0%, d2%)
USB port (optically insulated)
Integrated timer and calendar to record data
Maximum diameter of the electrical conductor for the amp clamp: the PCE-6801 ~30mm, PCE-6802
~55mm, PCE-3007 ~170mm
