Model C300B - Three Phase Power Calibrator and Tester

Calpro 300 PC software

PC software for control of C300B calibrator and automatic testing of power industry equipment. Software is dedicated for PC computers with Windows 2000/XP/Vista/7/8/10 and tablets with Windows 8.1/10.

Calpro 300 PC Software offers:

• user-friendly operation,
• database for devices and test procedures,
• fully-automatic test procedures,
• continuous monitoring of the test,
• tables and graphics for presentation of results,
• automatic measurements report generation.

LabView driver

National Instruments LabView driver for control C300B calibrator. It makes possible to set voltages, currents, angles, frequency, harmonics, reading analog inputs of C300 and also to make automatic test of electricity meter.

Terminal communication

RS232, USB/RS232 or Bluetooth/RS232 communication with text command enable the easiest way to control all functions of the C300B in any system. If you want to use C300B calibrator in your own test system it will be fast and easy - just use the terminal.

To set 3-phase basic setting like voltage, current, angle and frequency, send commands:

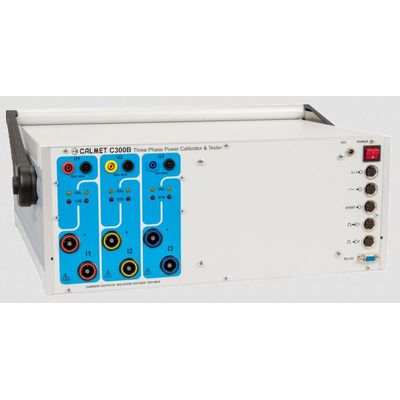

New generation of Three-Phase Power Calibrator with many easy to use functions for automatic calibrating and testing all type of measuring instruments and power engineering devices.

C300B is our newest calibrator series. We base on the newest technology and 25 years of experience in developing and manufacturing.

Our competence can give you only the best:

• High performance: 3x560V, 3x120A (1x360A), class up to 0.02%
• Huge output power and low weight: only 27kg (59lbs) in portable case
• Advanced functions but easy to used
• Manual operations and fully automatic procedures for calibrating and testing
• Professional service and support (it doesn`t matter if you have a complex or trivial issue)
• Low price in comparison to the best performance

Read the Data sheet and the rest of the website to know all functions of the C300B Calibrator and Tester. You will find there information of using:

Wide range and high accuracy of outputs:

• 3-phase voltages: 0.5000-560.00V
• 3-phase currents: 1.000mA-120.000A, possible to bridged to 1-phase up to 360A
• phase shift and angles between voltages: 0.00-360.00 degrees
• output frequency: 40.000-500.000Hz or synchronization to power net frequency
• impulse output: up to 200kHz to easy compare C300B to reference standard
• binary outputs: 2 outputs for triggering external devices

Wide range and high accuracy of inputs:

• impulse inputs: 2 inputs up to 200kHz for energy meters testing
• start/stop inputs: 3 timer inputs for protective relays testing
• AC inputs: 4 inputs 10.0000V, 16.0000mA, 200.000mA and 6.0000A for measurement transformers and current clamp testing
• DC inputs: 2 inputs ±14.0000V and ±24.0000mA for transducers testing

Advanced functions:

• automatic error calculation of calibrated or tested devices
• programming up to 64th voltage and current harmonics with magnitude and phase
• setting interharmonics and shapes like phase fired, triangle and burst
• power quality programming like dips, interruptions, swells, shocks, flicker, fluctuations and ramp signals

C300B is an universal device with many measurement functions and can be used as a:

• Calibrator and Tester of measuring instruments
• Automatic Tester and Error Calculator of power engineering devices
• Power Calibrator of sinusoidal signals
• Power Quality Calibrator of nonsinusoidal and time variable signals

Calibrator and Tester of measuring instruments

The C300B Calibrator and Tester is used for calibration and testing a wide range of measuring instruments used in power engineering. C300B enables testing:

AC voltmeters, AC ammeters, frequency meters, phase angle meters, power factor meters, wattmeters, VARmeters, VAmeters, clamps meters and much more,

power quality analysers, recorders and flickermeters IEC 61000-4-30 class A for EN 50160 compatibility or individual requirements of user.

Automatic Tester and Error Calculator of power engineering devices

The C300B enables automatic testing with calculating of errors and standard deviation:

electricity meters EN 50470 with accuracy relative to an internal reference of the C300B (or relative to an external reference meter) including: measure the basic error and influence of frequency, voltage, self-heating, distortion,?, checking the starting current and no-load run,

electrical measuring transducers for converting a.c. electrical quantities EN 60688 (voltage, current, active power, reactive power, frequency, phase angle, power factor),

current instrument transformers EN 60044 including measure the accuracy of current and phase angle as well as burden measurement,

current clamps with AC & DC voltage and current output including measure the accuracy of current and phase angle,

protective relays EN 60255 including checking of tripping time and tripping level characteristics of ANSI#21 Distance relays, ANSI#27/59 Under/over voltage relays, ANSI#32 Directional power relays, ANSI#50/51 Time overcurrent relays, ANSI#81 Frequency relays and more protective relays.

Power Calibrator of sinusoidal signals

The 0.02% or 0.05% accuracy of the basic parameters of the C300B Calibrator - voltage, current, power and energy in a wide voltage 21 - 560V and current 0.05 - 120A ranges, is expressed as a percentage of the setting value, without the component as a percentage of the range value. This form of errors specification is very useful when checking instruments, such as electricity meters.

Energy errors diagrams of the C300B Calibrator class 0.02 as a function of current settings for balanced and unbalanced loads at 230V/50Hz and power factor cosφ=1 and 0.5L are presented below.

Data were achieved during production in Calmet by the automatic calibration test procedure using Calpro300TS PC-Software and reference meter Radian RD33. C300B has a build in 200kHz impulse output and two 200kHz impulse inputs so if needed client can easy compare C300B Calibrator to reference standard in any laboratory.

Power Quality Calibrator of nonsinusoidal and time variable signals

Power Quality function enables generation of nonsinusoidal voltage and current waveforms with harmonics, interharmonics and subharmonics as well as simulation of voltage, current, phase shift and frequency variations as a function of time (dips, interruptions, swells, flicker, fluctuations and ramp signals).

PQ functions meet all accuracy requirements of power quality testing to the EN 61000-4 series of standards.
