Relay testing equipment has long been associated with the heavy weight and the large size. So carrying the relay testing equipment to work site seems to be the job of men who are physically strong.

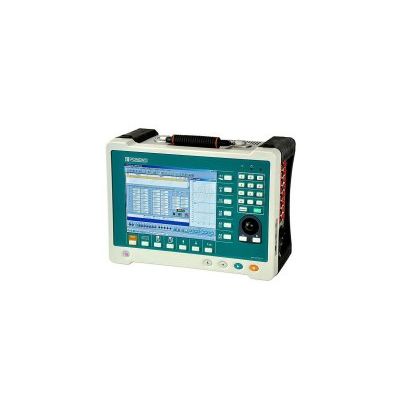

Now, here comes PONOVO’s L336i, the incomparable lightest and smallest relay test set. Small as it is, the little equipment is capable of dealing with all types of tasks which used to be conducted by big equipments. In that sense, PONOVO’s little but powerful L336i can live up to its reputation as a colossus.

Current sources: 6*15A
Voltages: 4*300V
Dimension: 256*110*395 mm
Weight: 8.8 kg

By option, it can be upgraded to support the test of IEC61850 compatible protective relay.

Relay engineers highly appreciate it because by using of our test template, it can simplify their work in a large degree.

Throughout the last decade, PONOVO POWER CO., LTD (previously known as Power Advanced Co., LTD) has been focusing on providing professional solutions to over 5000 clients in the fields of intelligent testing and power quality control.

2001: Foundation of PONOVO POWER CO., LTD
2001: Launch of PWA, the relay test system with in-built output monitoring and recording function
2002: Launch of PW466A, the relay test system with 6 currents and 6 voltages
2003: Launch of PH01, the testing set for Traveling Wave Fault Locater
2004: Launch of PWS, the relay test system for subway used protective relays
2005: Launch of PWF, the relay test system for digital substation with IEC61850 protocol
2005: Launch of e40, the software for automatic test and management
2006: Launch of the relay test system for serial compensation system used relays
2007: Launch of PM605A, the universal calibrator and test system
2008: Launch of T200A, the single phase universal tester which can provide 120s output time at 250A
2008: Launch of MR1200, the portable disturbance recorder with in-built oscilloscope function
2008: Launch of Power Test relay test software
2009: Launch of the relay test system for 500KV DC converting station test application
2009: Launch of L336i, the compact relay test system with 6 currents and 4 voltages and has a weight of 8.8kg
2009: Launch of PCT100i, the CT/PT tester with a weight of 11kg
2009: Launch of HB-6000, the online DGA (dissolved gas analyzer) system for transformer
2009: Launch of PF3000, the test system for automatic test of power filters
2009: Launch of T1000/T2000, the primary injection kit which can provide 120s output time at 1000A
2009: Launch of TD4000A, which can continuously supply 4000A DC current for testing DC type CT
2010: Launch of PCT200i, new generation of CT/PT Tester
2010: Launch of PNS series handheld digital signal analyzer for intelligent substation maintenance
2010: Launch of new generation PNF801 portable Fiber Digital relay tester with 8 fiber optical ports
2010: Launch of SSCS, the solid state composite switch for improving the performance of capacitor bank control
2010: Launch of LVRT (Low voltage ride through)
2011: Launch of APF (Active Power Filter)
2011: Launch of STATCOM (Static compensator)
2012: Launch of Merging Unit（MU) Tester
2012: Launch of NF802 Intelligent Relay Tester
2013: Launch of PNS610 digital signal analyzer
2013: Launch of PW40i,new-3-phase relay test set specially for G59 testing solution
