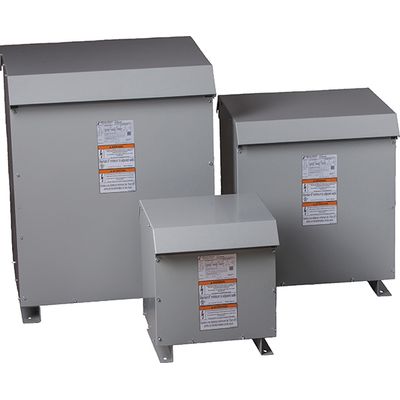

Jefferson Electric - Three-Phase Ventilated Transformers
Applications; For all general loads, indoors or out, including lighting, industrial and commercial applications; General Purpose: 15 – 1,650 kVA.
Most popular related searches
- Cores of high quality electrical steel
- Meets DOE-2016 and NRCan-2019 standards for energy efficiency
- NEMA 3R-rated enclosures standard
- Heat-cured ASA-61 gray powder coat finish
- 60 Hz operation
- Aluminum windings
- Primary taps on most units
- 150°C temperature rise
- 220°C insulation class
- Compact design for easier handling and installation
- Large connection compartment for ease of wiring and installation
- Quiet operation for installation flexibility
- Hassle-free front cover installation
- Taps provided on primary to compensate for voltage variations
- Seismic certification for all units through 1,000 kVA
- Meets NRCan C802 2019 requirements for energy efficiency
- January 1, 2018 Ontario requirements
- Canada-wide May 1, 2019 requirements
- Built in accordance with NEMA, ANSI, UL and CSA standards
- Other sizes and voltages available as custom
- CE Marked units available as custom
- Wall mount brackets available for units up to 75 kVA
