Landpower - Model LP-TR-01 - Tile Roof Solar Mounting Systems
Landpower's Tile Roof Solar Mounting Systems are engineered to provide optimal flexibility for photovoltaic installations on various tile roofs, including pantiles, plain tiles, and slate roofs. Designed to meet a range of technical specifications, these systems accommodate modules that flush with the roofing structure, with installation angles from 10 to 60 degrees. Constructed from high-class aluminum alloy (Al6005-T5) and stainless steel 304 with anodized coatings, these mounts adhere to international standards such as AS/NZS 1170. They support wind speeds up to <60m/s and snow loads up to <1.4KN/m², maintaining structural integrity up to 20 meters in building height. The tilt-in rail structure allows for extensive customization and ease of assembly through pre-assembled components like T modules, clamp kits, and versatile hooks. With multiple roof hooks available for various tile types, they facilitate quick and efficient installation, thereby reducing labor costs while offering durability with a 12-year warranty and a 20-year service life.

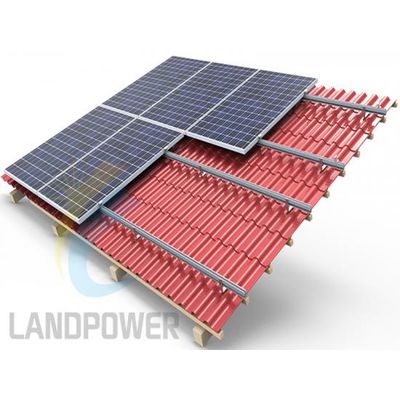

Landpower Tile Roof Mounting is engineered for the maximum flexibility possible in designing and planning for various tile roof PV installations, like pantiles.plain tile, and slate roofing etc It is applicable to install the usual module to flush with the various tiled roof. Using our innovative Rail and pre-assembled components like tilt-in T module, clamp kit and various hooksour tile roof mounting makes the installation easy and quick to save your labor cost and time.
- Install site : Various Roof
- Tilt Angle : Flushed with the roof (10-60 deg)
- Building Height: Up to 20 m
- Max Wind Speed: <60m/s
- Snow Load: <1.4KN/m2
- Standard : AS/NZS 1170 and other international Standard
- Material: High Class Aluminum alloy AI6005-T5& Stainless steel 304
- Color: Natural or Customized
- Anticorrosive: Anodized aluminum & stainless steel
- Warranty: 12 years warranty and twenty- year service life
