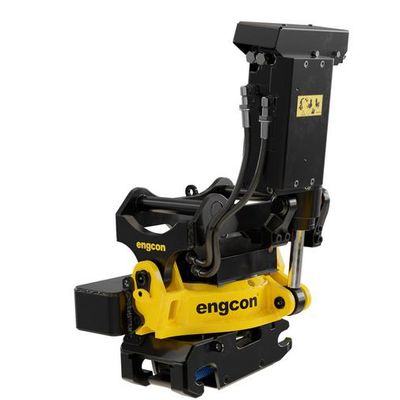

Engcon - Model EC02 -Tiltrotator
The tiltrotator: One of the market’s smallest tiltrotator’s for machines weighing up to 3.5 tonnes. With a basic weight of 77 kg, the EC02 has a minimal impact on stability while delivering access and flexibility that only a tiltrotator can provide.
Suitable for all excavators in the 1.5–3.5 tonne weight class
- Rotation ∞
- ± 40° tilt
- Complies with European safety standards
- A load-holding valve as standard equipment provides maximum safety
Quick hitch: We offer most types of hitches available on the market.
Control system: Choose between several different control systems based on your machine´s characteristics. The EC02 can usefully be fitted with engcon’s DC2 proportional control system for infinitely variable high precision control and remote support via the cell phone network.
Electrical system: Standard 12 volt.
The illustration shows a typical configuration. Technical data may vary. We reserve the right to make changes without prior notice.
- Width A [mm]: 180
- Width B [mm]: 155
- Width C [mm]: 160
- Total length D [mm]: 435
- Build height E [mm]: 245
- Tilt [°]: 2x40
- Weight [kg]: 77
- Max bucket width recommended by engcon [mm]: 900
- Rec hydraulic flow DC2/SS10 [l/min]: 25
- Rec hydraulic flow SS9 tilt/rotation [l/min]: 7/20
- Max hydraulic pressure [MPa]: 22
- Max breakout torque [kNm]: 20
- Standard mounting: S30
- Base machine weight [t]: 1.5–3.5
